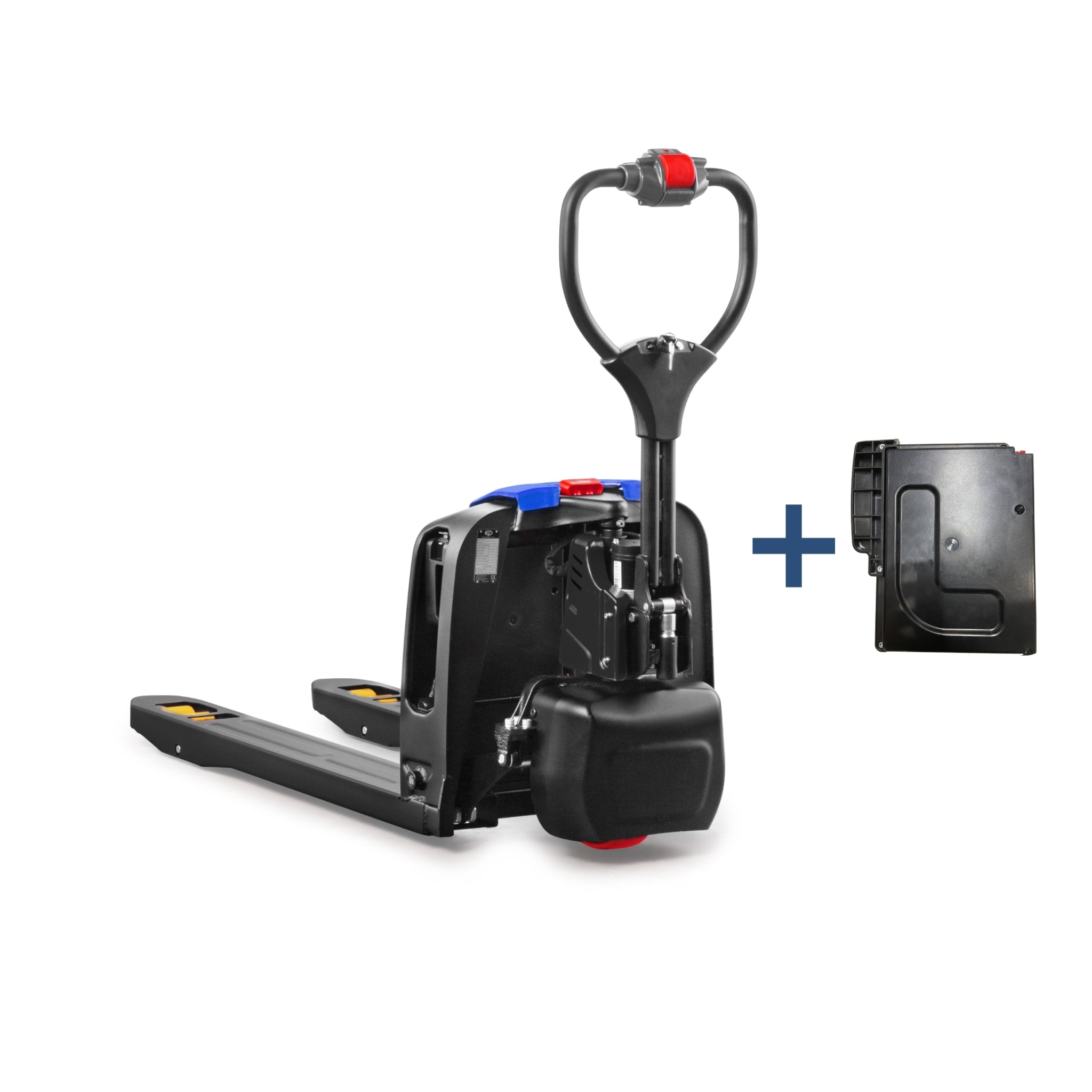

EP F4 Electric Pallet Jack with Second Battery

EP F4 Electric Pallet Jack with Second Battery

Inexpensive helper for occasional and light use.
– 17 %
1.346 €
1.119 € 1.342,80 € VAT included
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 2 left!

Free delivery: Friday, 20 February

Questions? We’re here to help you

0800 941615

This EP electric pallet truck with a lithium-ion battery is a versatile all-rounder for indoor use and onboard truck transport. Fully electric travel, lifting, and lowering significantly accelerate daily throughput.

  • Maximum Throughput: Value pack includes a second lithium-ion battery. The rapid battery exchange takes only seconds, reducing downtime and ensuring the electric pallet jack remains ready for multi-shift operation without interruption.
  • Operating Time: A single battery charge lasts approximately 3.5 hours under continuous use
  • Second Battery: With the included exchangeable battery, total operating time can be extended to 7 hours
  • Charging Time: The battery is fully recharged in approximately 3 hours. After just 30 minutes of opportunity charging at a standard outlet, 20% of the battery capacity is already reached
  • Lithium-Ion Battery: Maintenance-free with 24V voltage and 20 Ah capacity
  • Forks: At 1,150 mm, these are ideal for working with Euro-pallets and pallet cages
  • Turning Radius: Only 1,360 mm for flexible use in confined spaces, such as rack aisles, truck loading beds, and containers
  • Gradeability: Fully loaded, the EP pallet truck can easily negotiate ramp gradients of up to 4%
  • Applications: This cost-effective electric pallet jack is ideal for occasional pallet movement on level indoor floors. For environments with curved paths, the version with support rollers is recommended.

Features

Non-Stop Operation with Exchangeable Battery

Set of 2 Value Pack for the EP F4 for immediate battery swapping – ideal for multi-shift operations without charging downtime.
Elektrohubwagen von EP für 1500kg 4

Compact construction

The EP electric pallet truck has a small turning radius, making it manoeuvrable and ideal for taking with you in a truck.
Elektrohubwagen von EP für 1500kg 8

Safety precaution

The lift truck is secured against unauthorized use by the electronic ignition lock.

High reliabilty

24 V strong Li-Ion battery for 3.5 hours of use, with 3 hours of charging time - can be retrofitted with a second battery.
Elektrohubwagen von EP für 1500kg 7

Quick access

Thanks to the plug-in system, the battery is removed within seconds and can be charged quickly and easily on the charger.

Tortoise Mode

Makes precise manoeuvring and positioning easier.

Technical data

General
Capacity
1500 kg
Weight
120 kg
Forklift licence needed
no
Seal
CE
Warranty
2 year warranty
Brand
EP Equipment
Product ID
10011820-0
Wheels
Wheels material
Polyurethane (PU)
Steering wheel diameter
210 mm
Steering wheel width
70 mm
Fork roller type
tandem
Load roller wheel diameter
80 mm
Fork roller width
60 mm
Lift
Lift height
187 mm
Lift motor power
0.5 kW
Lift speed, unladen
0.02 m/s
Lift type
electric
Drive
Drive motor power
0.75 kW
Drive motor type
DC motor
Travel speed, unladen
4.5 km/h
Creep speed button
yes
Gradeability, unladen
10 %
Max. gradeability, laden
4 %
Drive
electric
Brake
electrical brake
Battery
Battery type
lithium-ion
Operating time
3.5 h
Battery charging time
3 h
Battery capacity
20 Ah
Voltage
24 V
Battery voltage
24 V
Battery quantity
1
Battery weight
5 kg
Battery dimensions
200x90x260 mm
Battery charger
external
Delivery
Delivery
forwarding agency
Delivered as
on pallet
Links
Product brochure

Dimensions

  • Capacity
    Fork length
    Lift height
    Weight
    Wheels material
    Battery capacity
    Battery type
    Load centre
    Max. gradeability, laden
    Operating time
    Warranty
    Free delivery
    Customer Reviews
    Price

  • EP F4 Electric Pallet Jack with Second Battery

    1500 kg
    1150 mm
    187 mm
    120 kg
    Polyurethane (PU)
    20 Ah
    lithium-ion
    600 mm
    4 %
    3.5 h
    2 year warranty
    Friday, 20 February
    from 1.119 € 1.342,80 € VAT included
    from 1.346 €
    -17%
