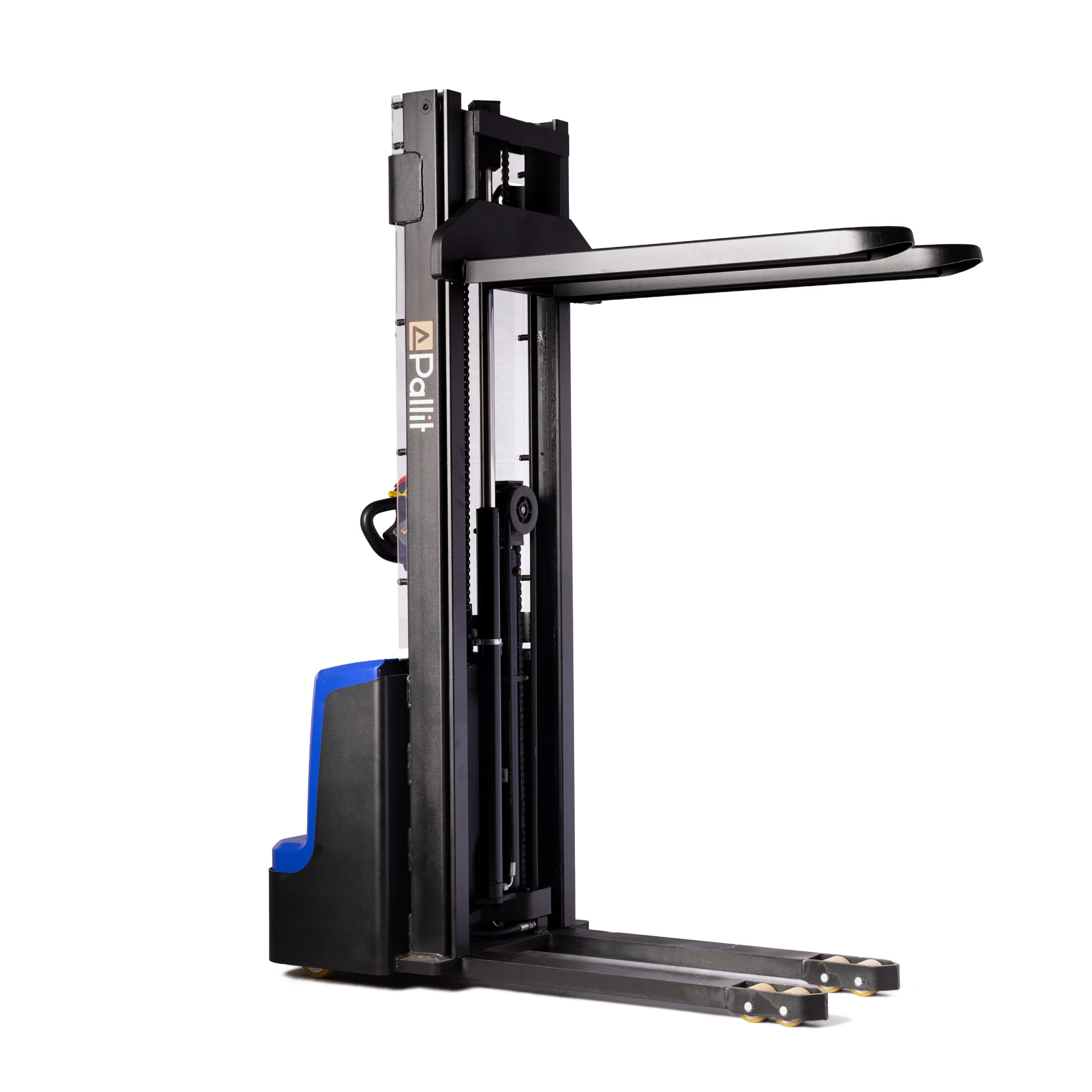

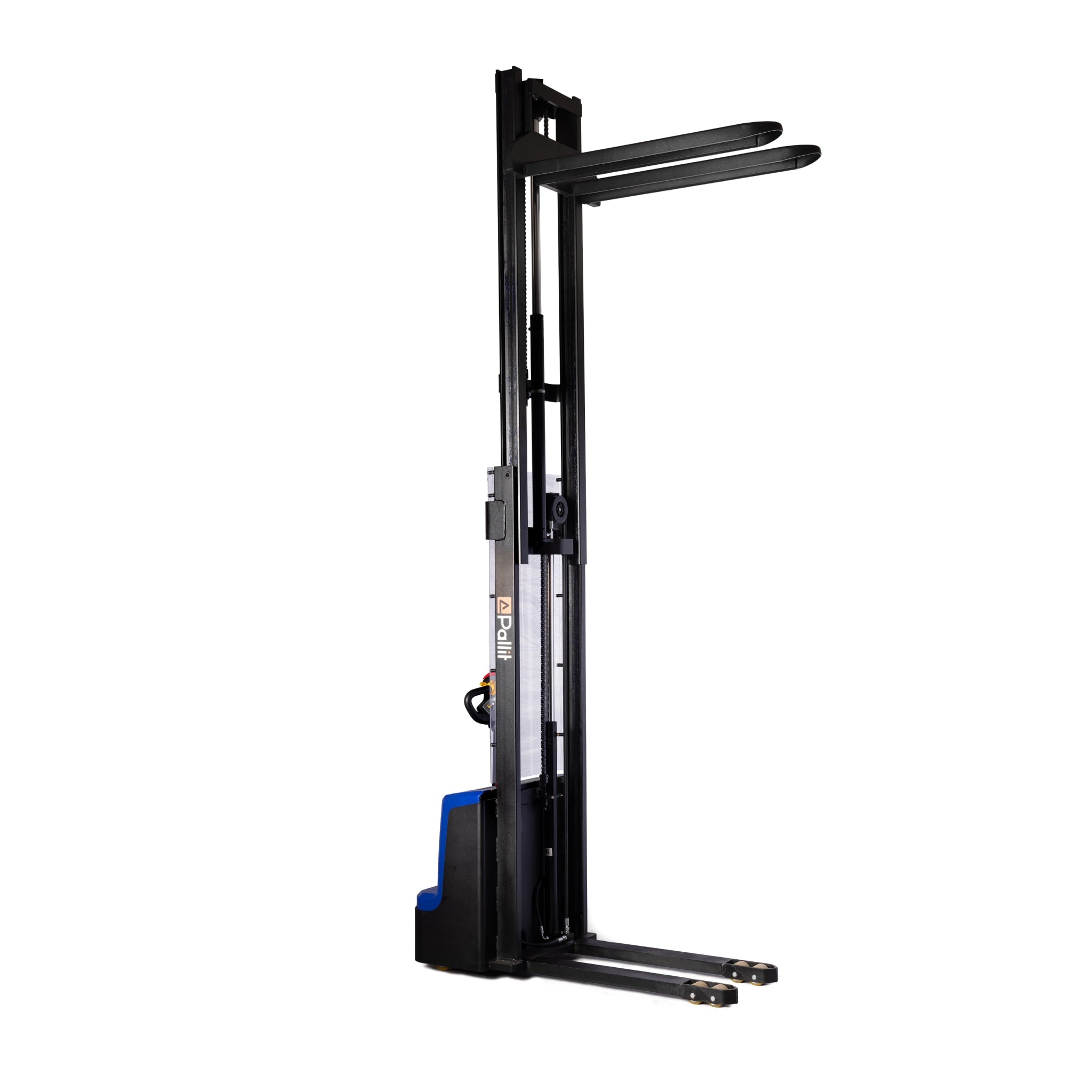

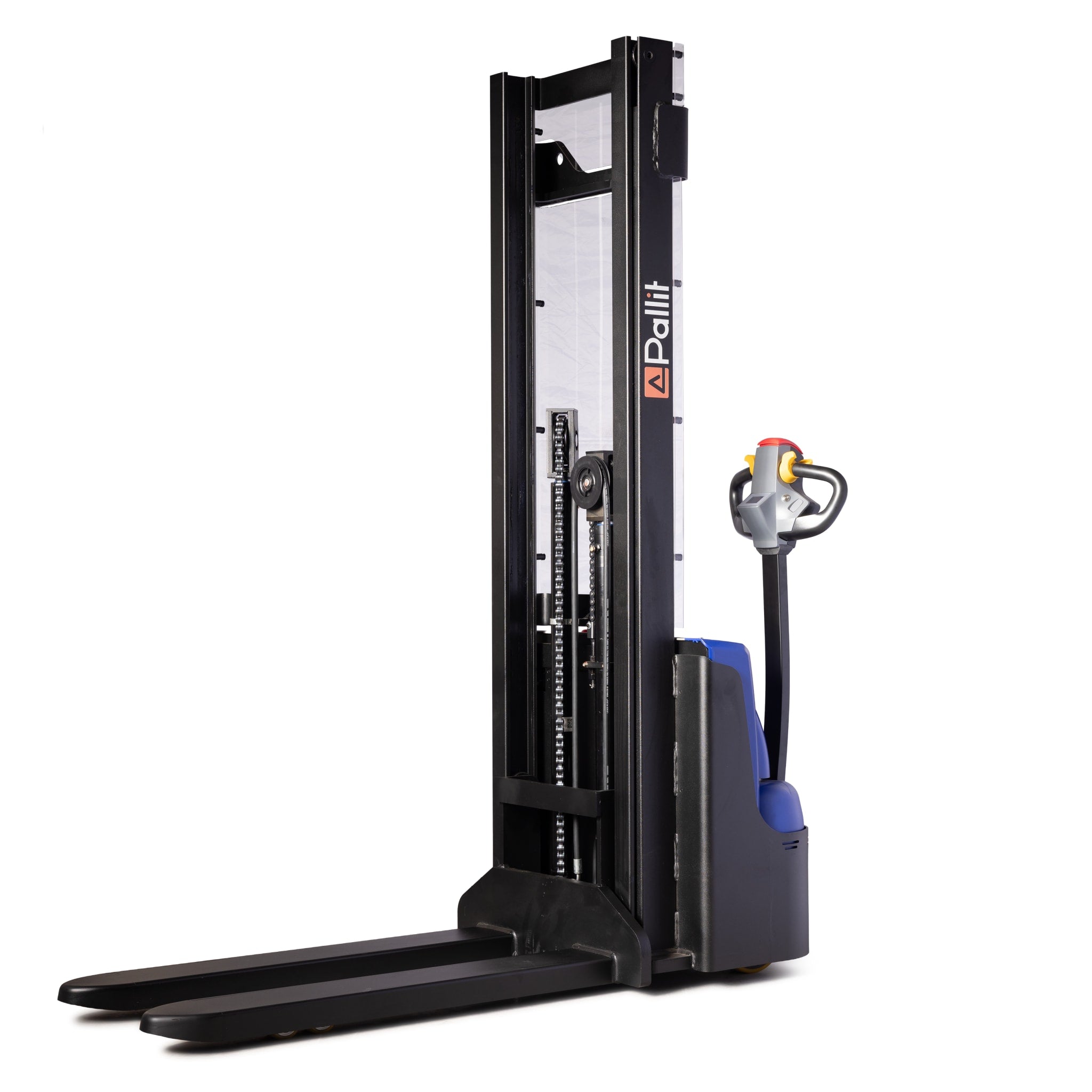

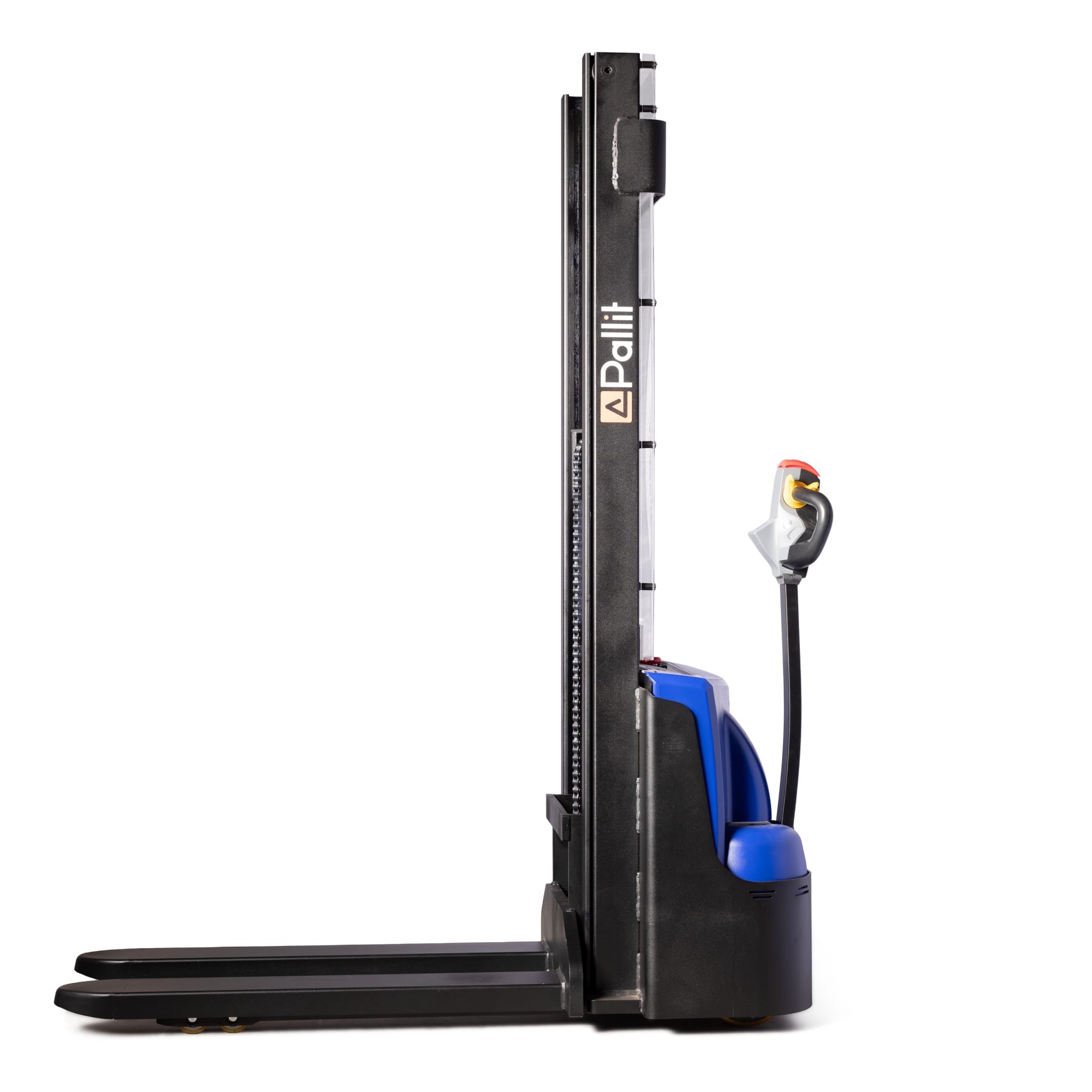

Pedestrian stacker PRECISE with proportional lift and full free lift

Name: Pedestrian stacker PRECISE with proportional lift and full free lift
Brand: Pallit
SKU: 10011547-224
Price: 5029.0 EUR
Availability: InStock

A highly affordable high lift truck with pro features for precise load handling up to 1200 kg

5.029 € 6.034,80 € VAT included

Lift height

Availability: Only 2 left!

Free delivery: Wednesday, 11 June

SKU 10011547-224

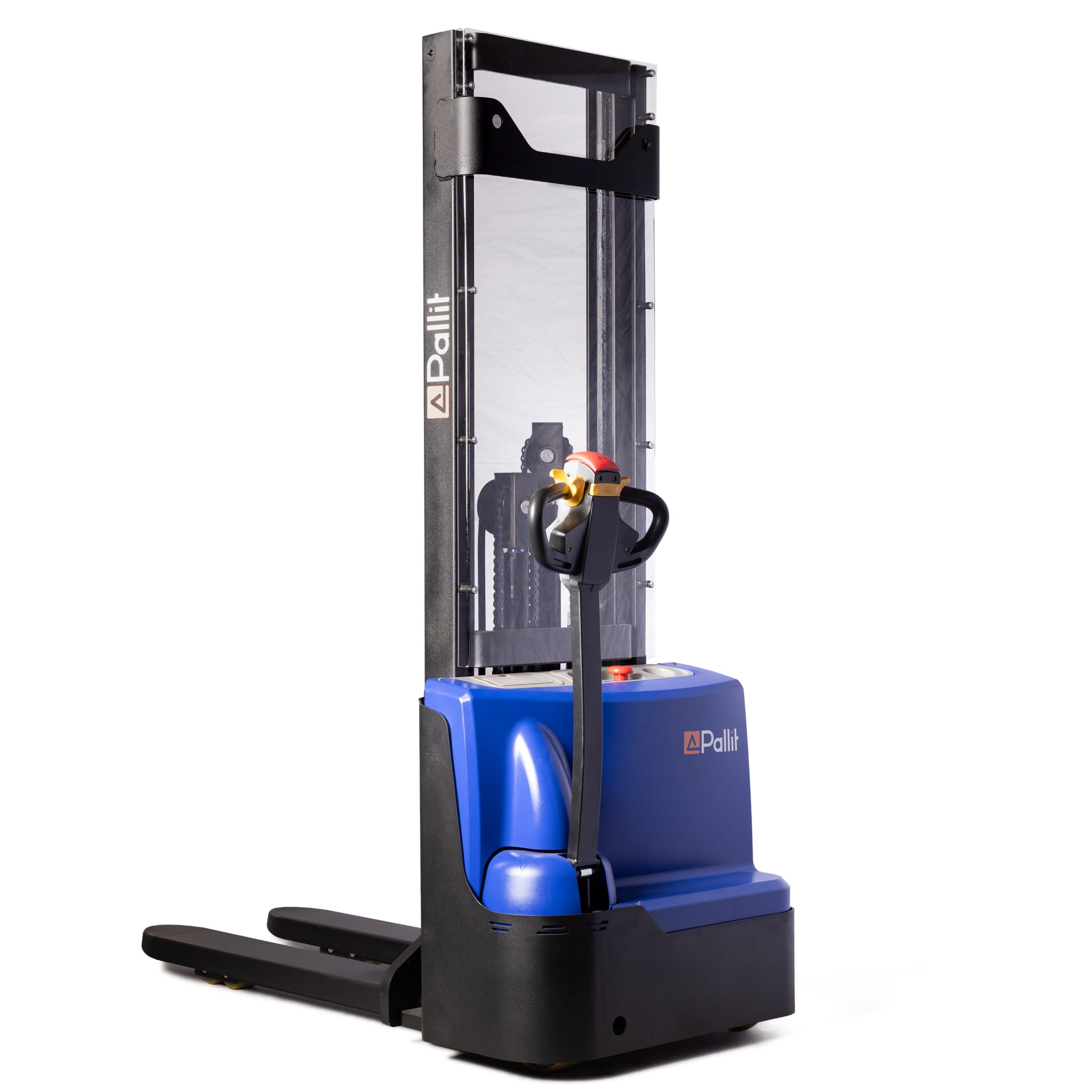

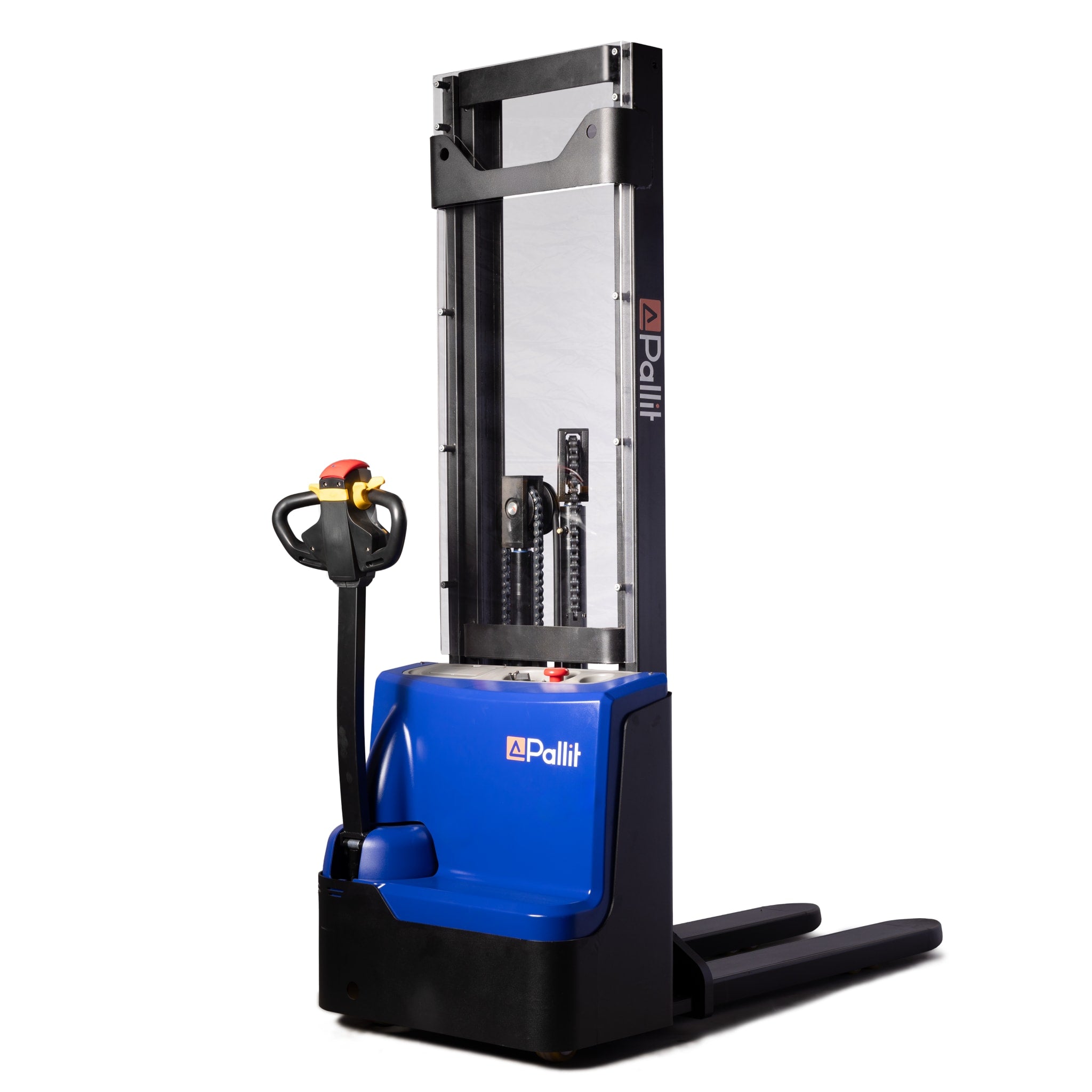

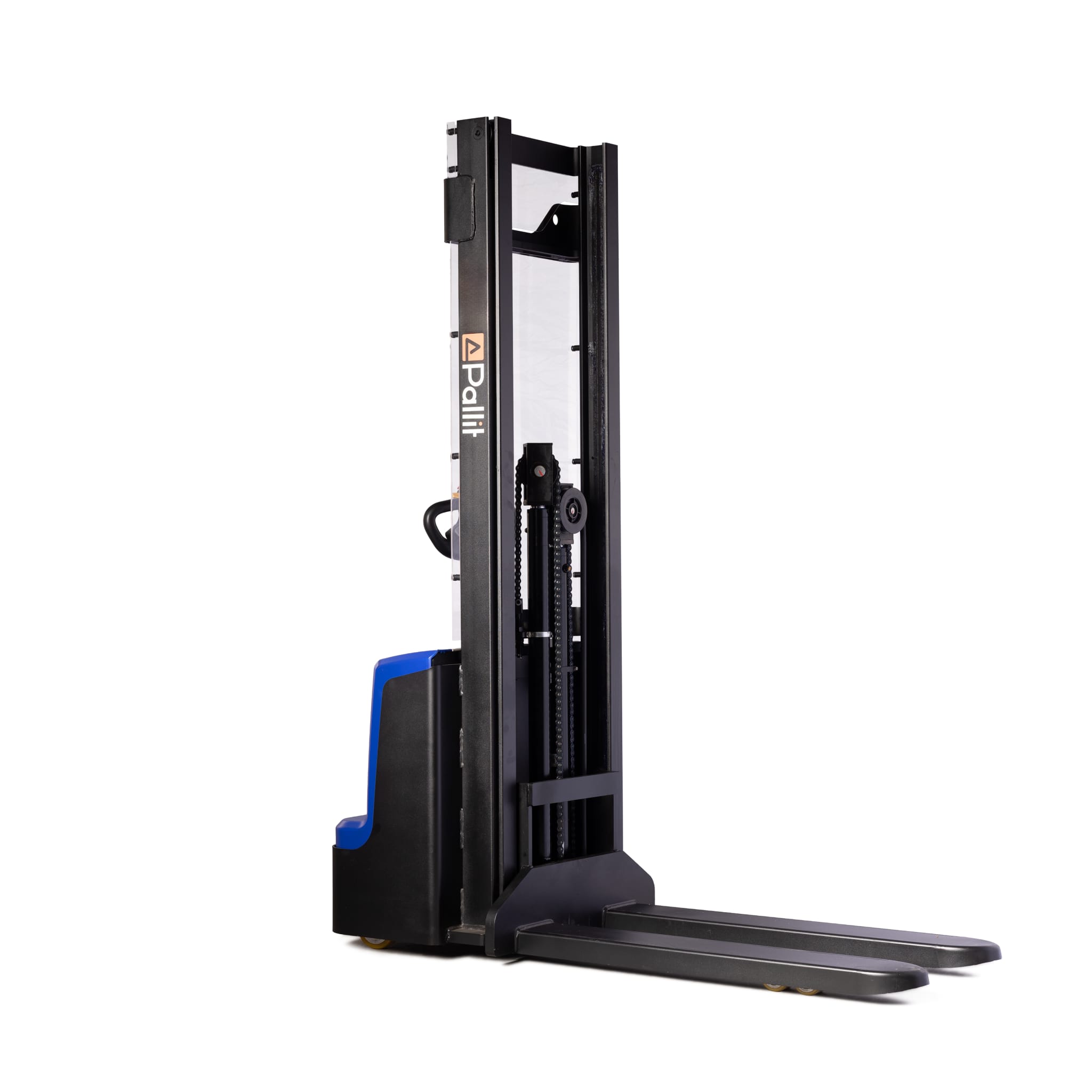

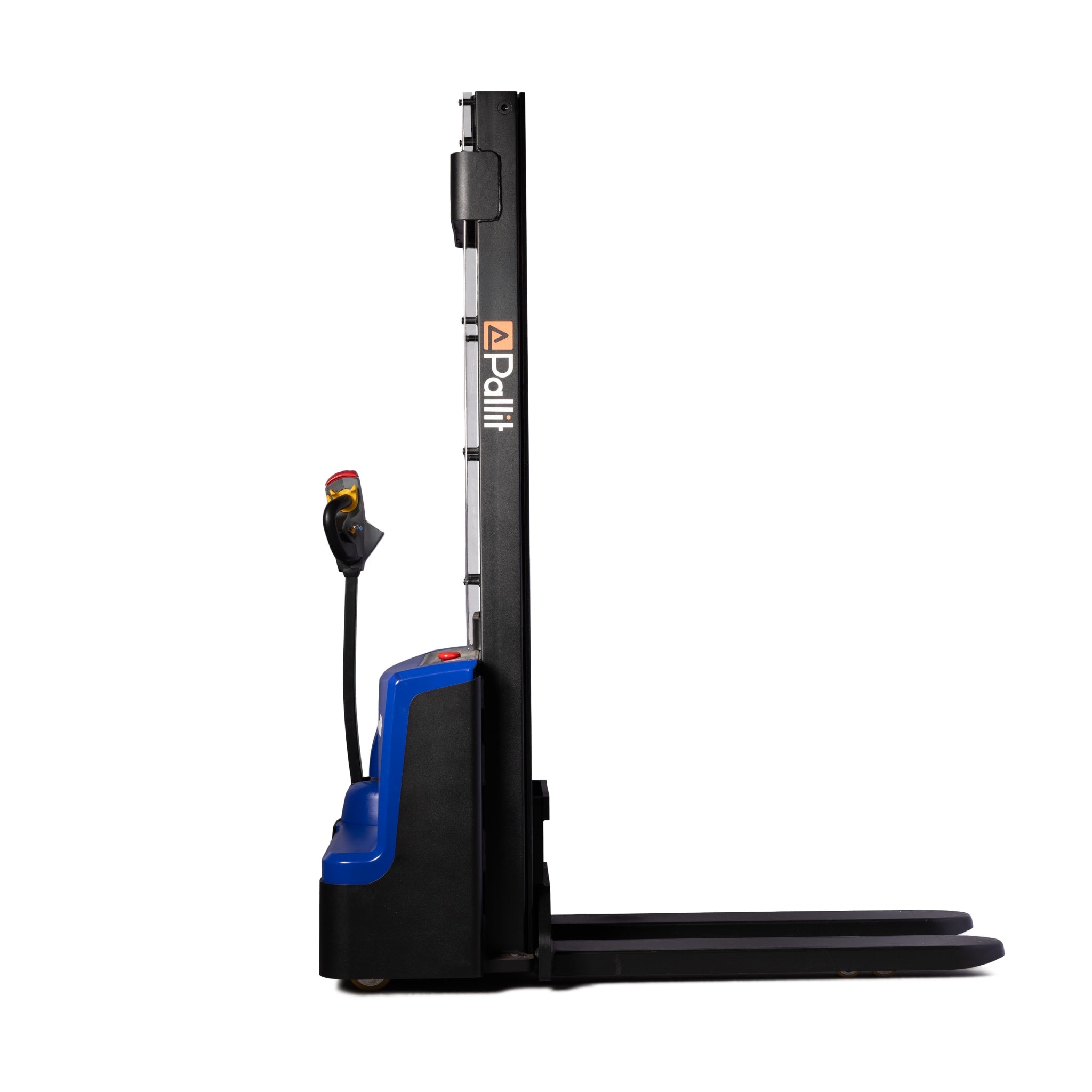

This electric pallet stacker with proportional lift and full free lift offers maximum flexibility and precision. It is a powerful helper for daily material transport of up to 1,200 kg.

Proportional lift function: for precise lifting and lowering

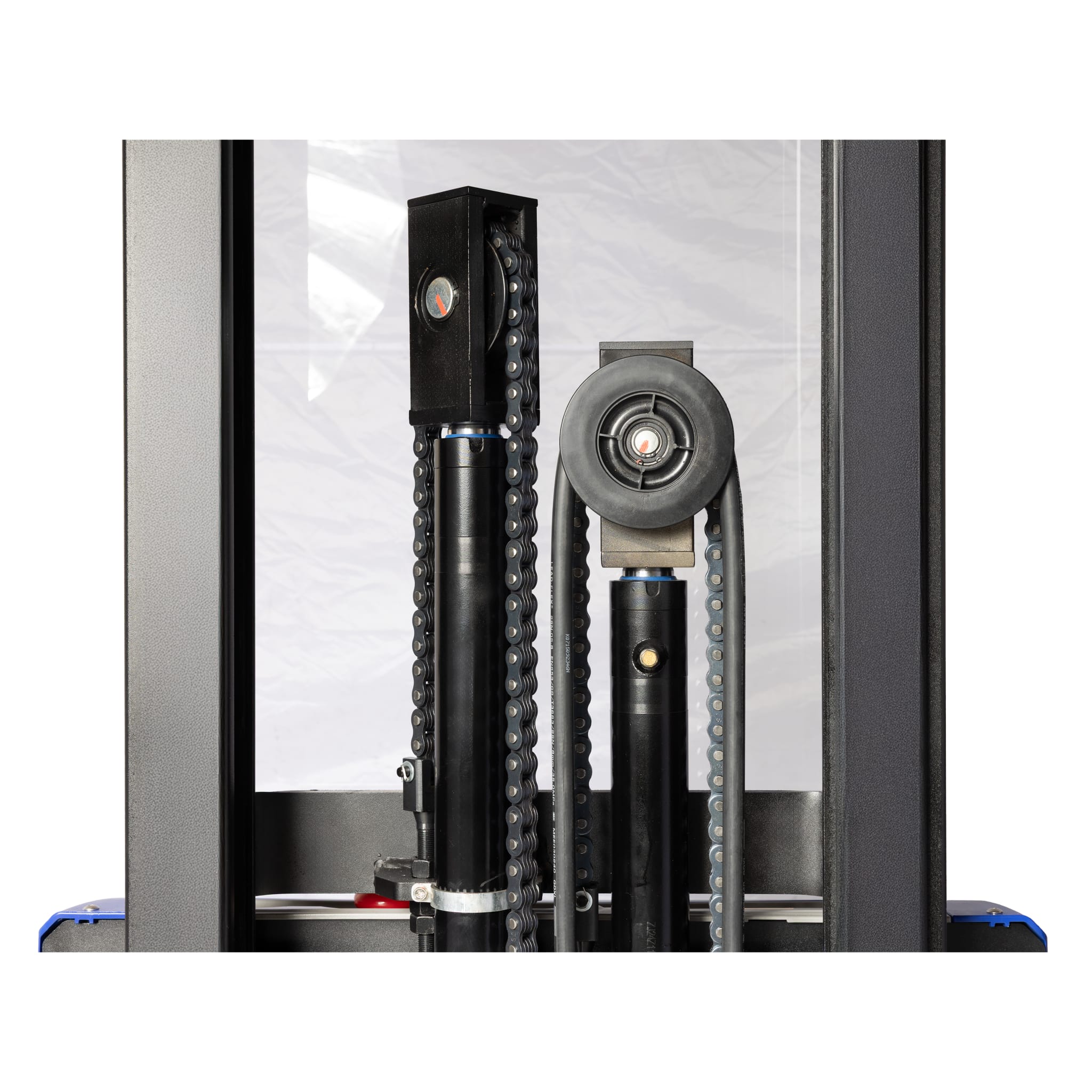

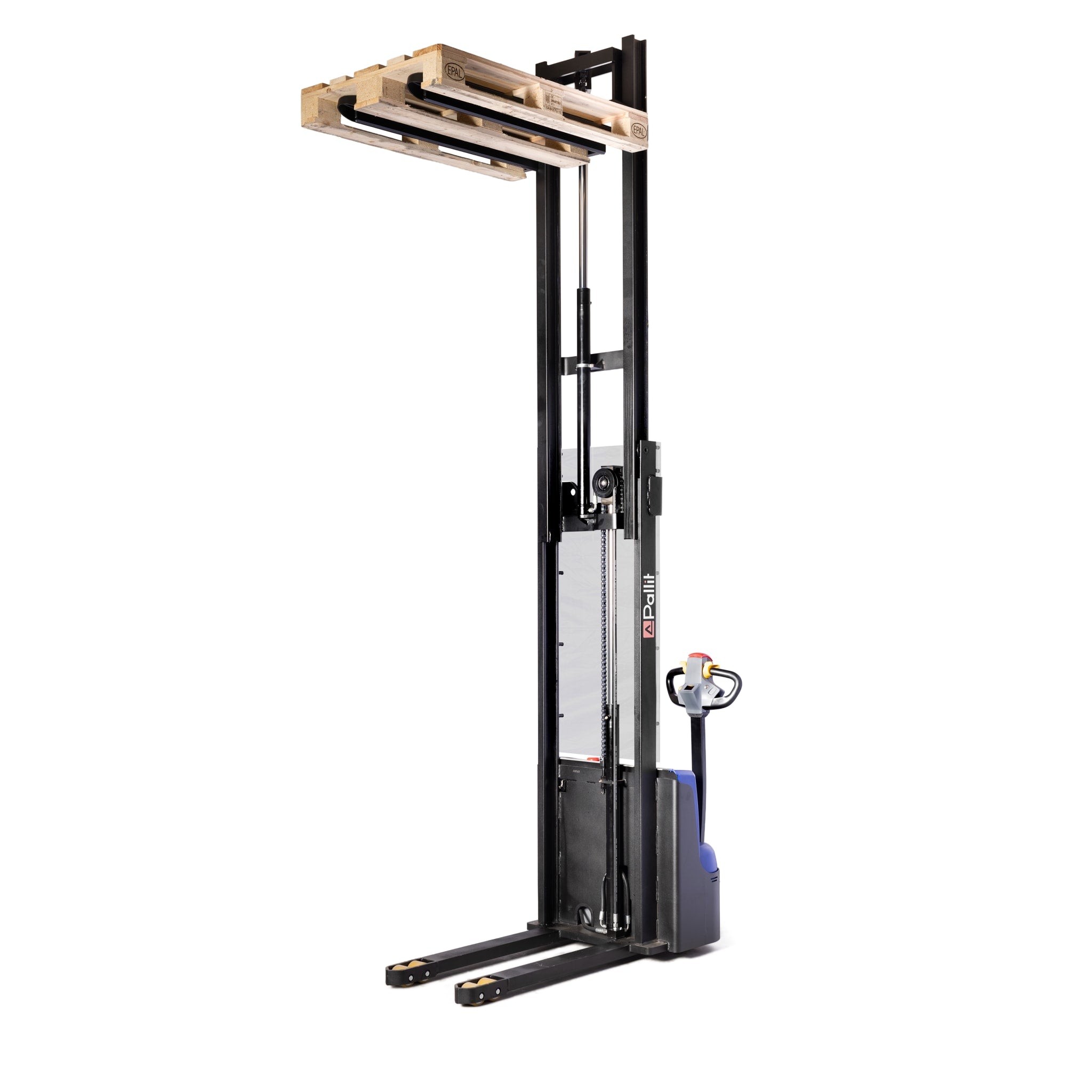

Free lift function: Raise the fork without the mast raising - ideal for low ceilings or doors
Load capacity: up to 1,200 kg
Battery: Powerful AGM batteries with 71 Ah capacity
Charging: Simply plug the integrated power cable into any 230V socket
Visibility: Plexiglass panel ensures the best visibility during use

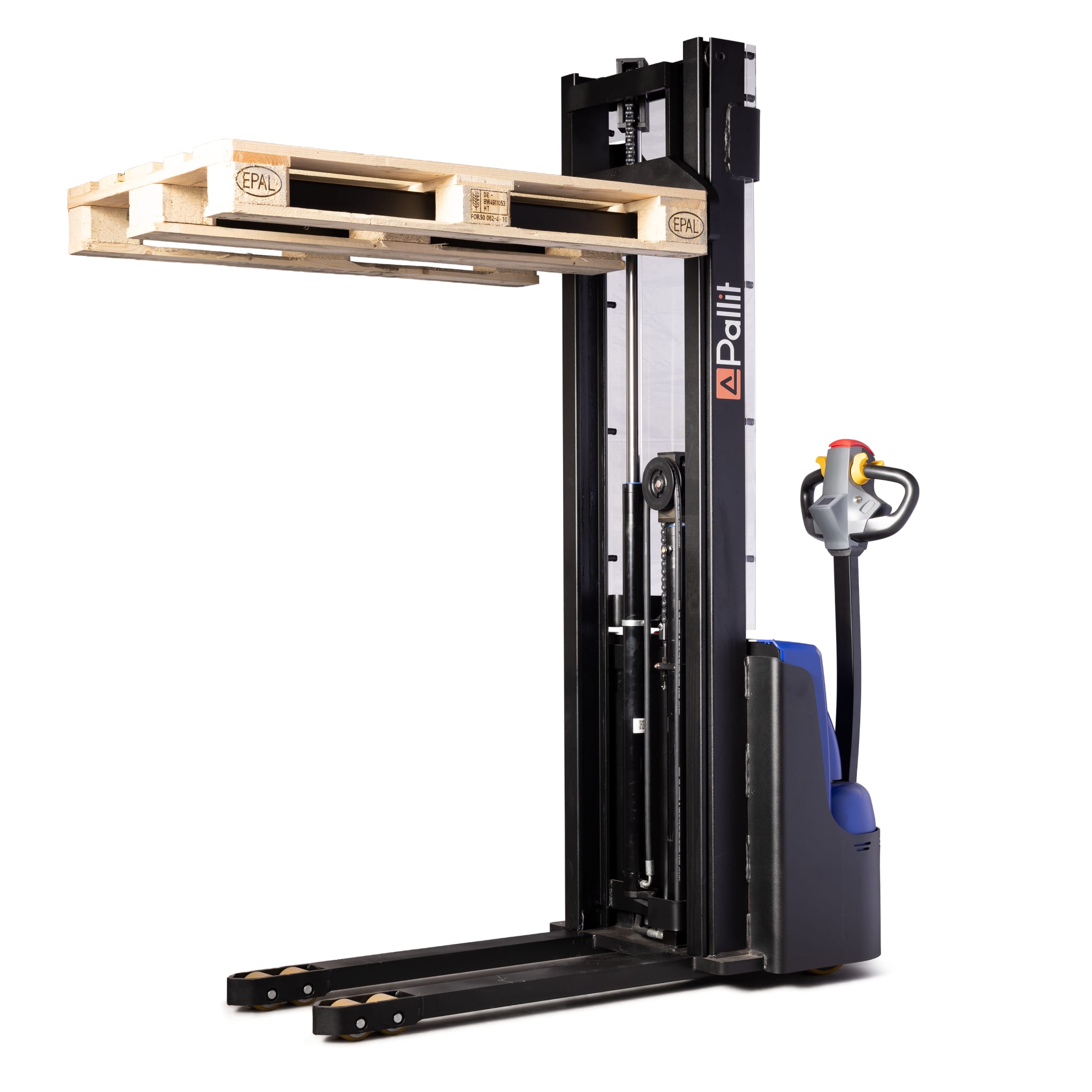

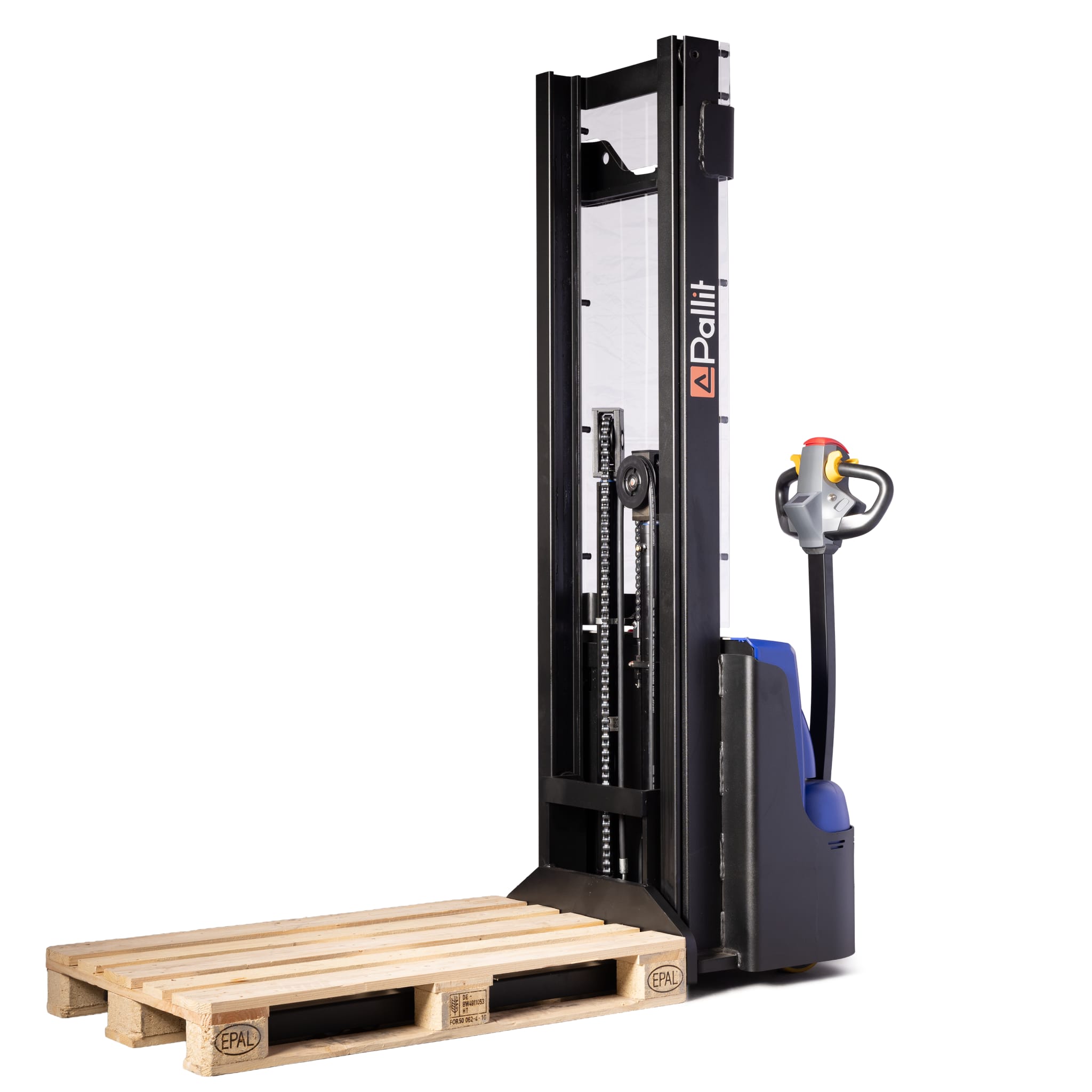

Use: Stacking, storing, loading and transporting pallets indoors

Features

proportional stroke function

This allows you to lift and place the pallet gently and precisely at any height.

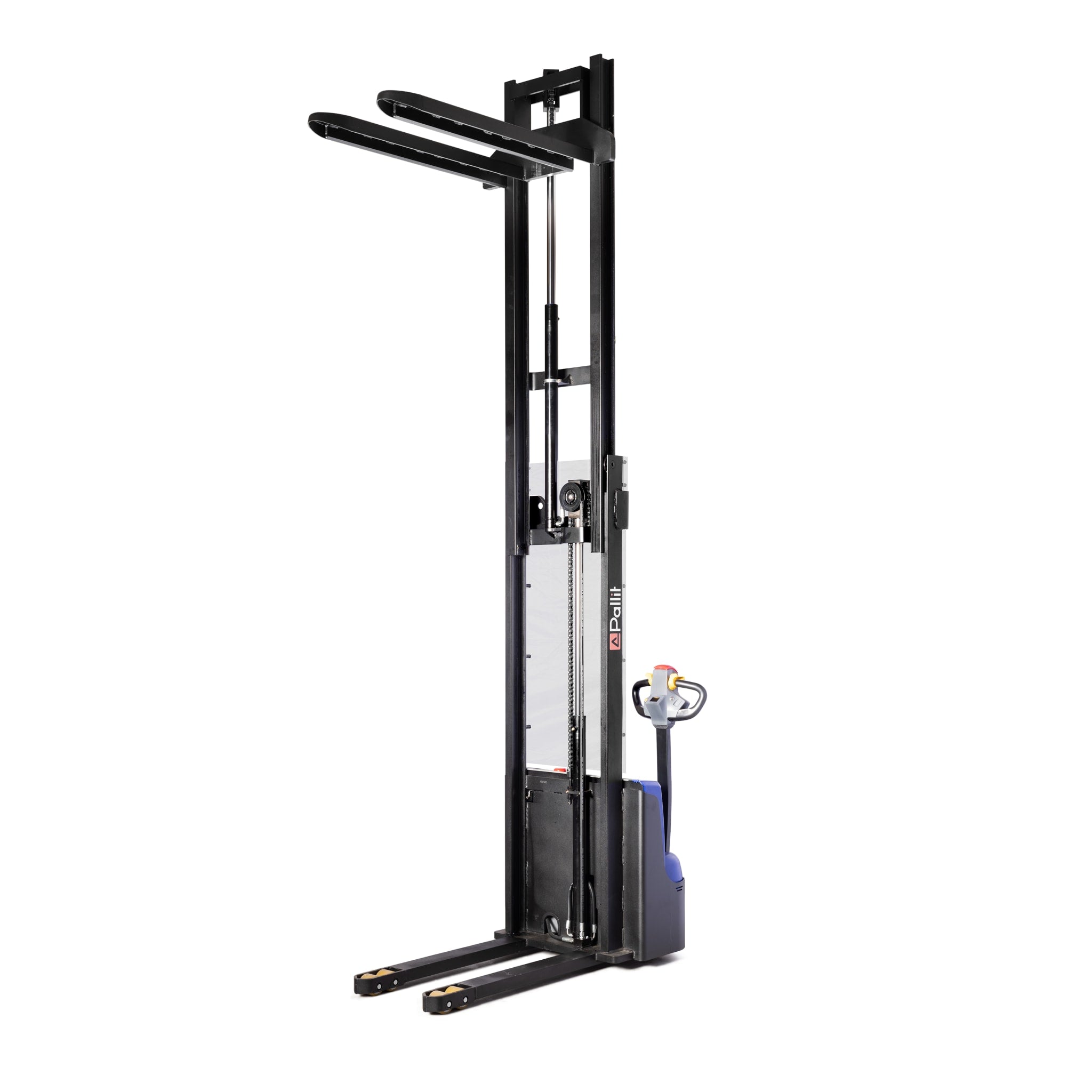

free lift function

Allows the fork to be lifted without the mast rising - ideal for low ceilings or doorways.

Strong load-bearing capacity

With a load capacity of up to 1,200 kg, perfect for daily material transport.

Powerful AGM battery

The maintenance-free 71 Ah AGM battery delivers strong performance and is ideal for intensive use.

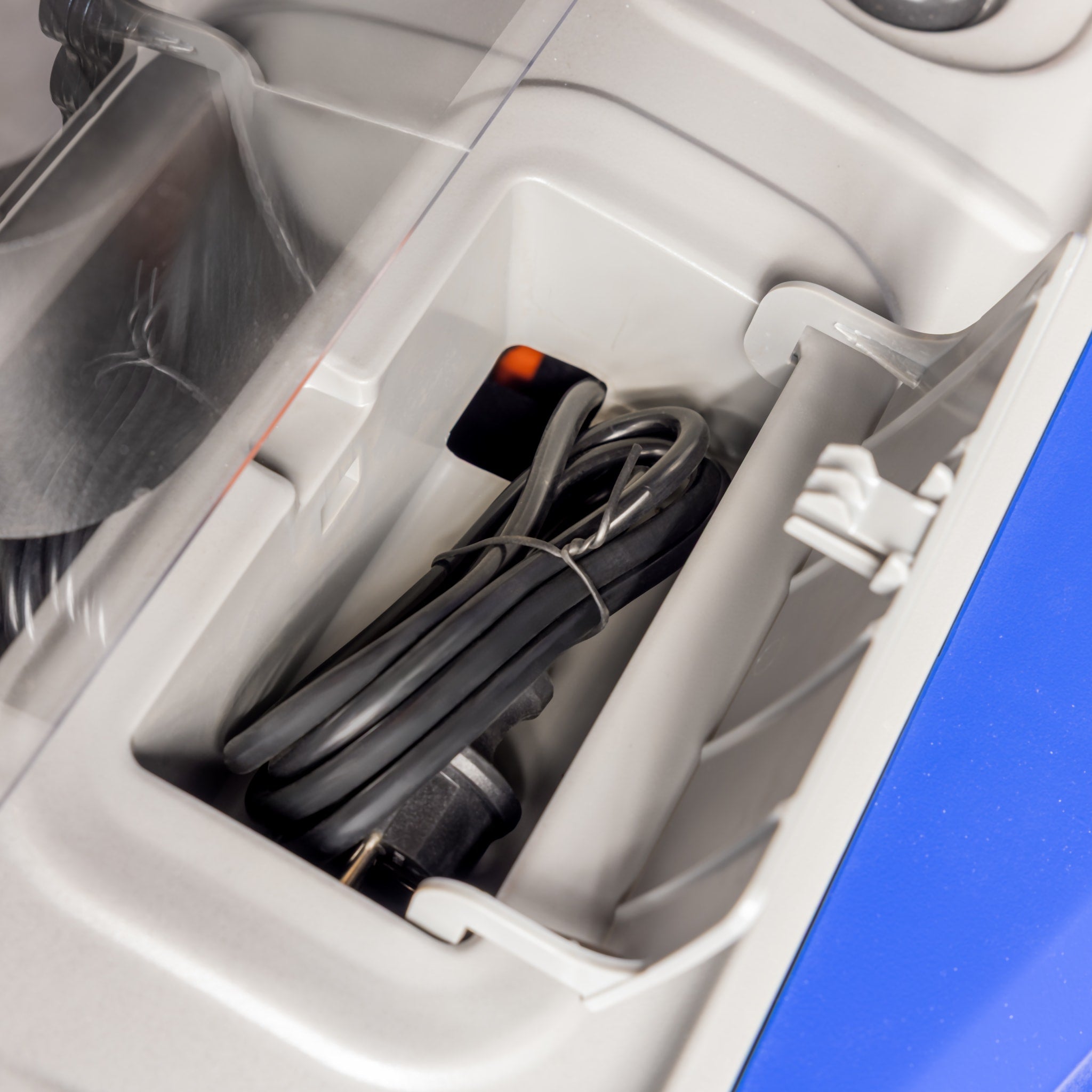

Easy loading

Thanks to the integrated power cable, the device can be conveniently charged at any 230V socket.

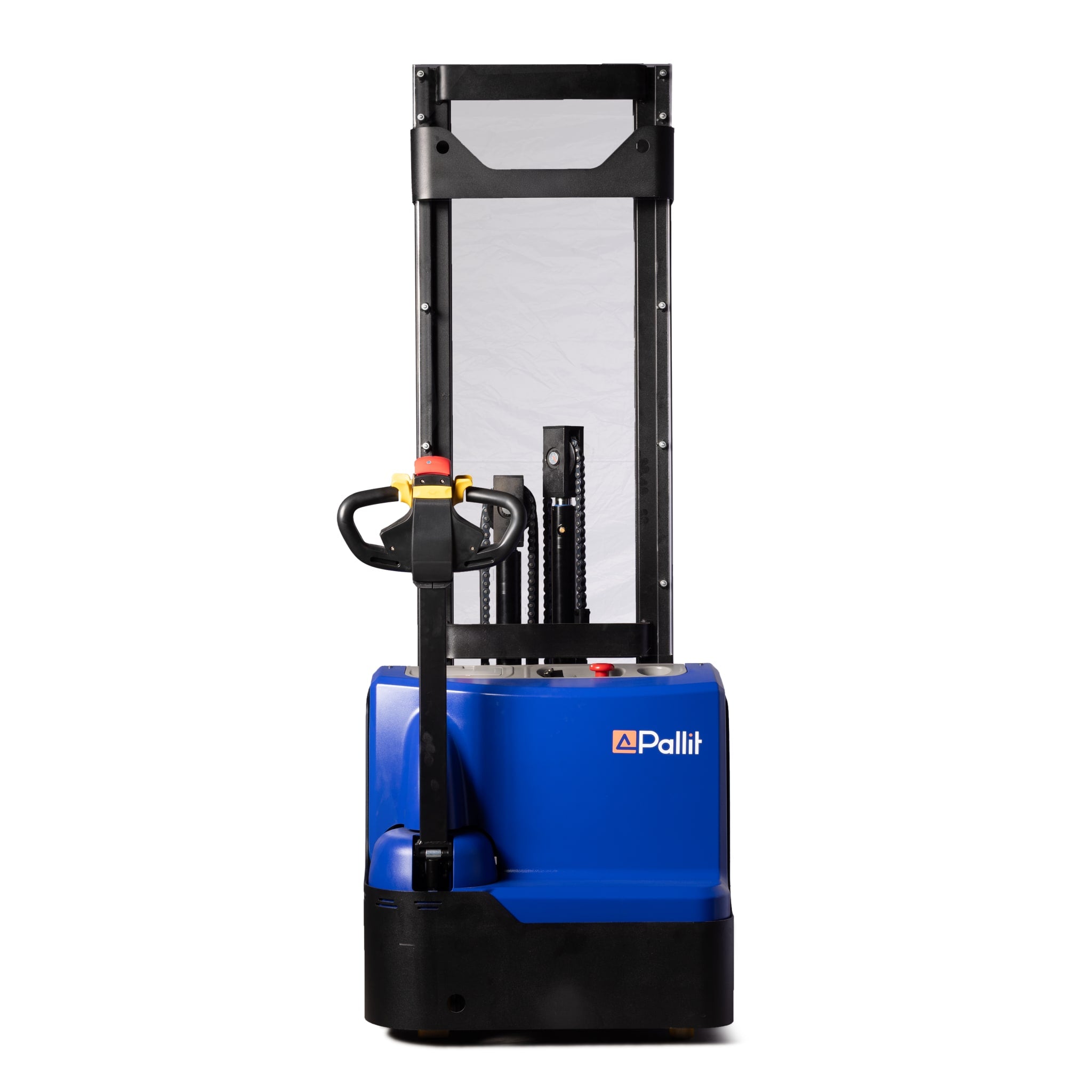

Clear view through plexiglass pane

The plexiglass pane offers optimal visibility of the load and surroundings for greater safety when working.

Technical data

General

Capacity

1200 kg

Weight

635 kg

Material

steel

Chassis surface

powder coated

Colour

blue

Warranty

5 years warranty Basic

SKU

10011547-224

Brand

Pallit

Wheels

Wheels material

Polyurethane (PU)

Steering wheel diameter

210 mm

Steering wheel width

70 mm

Load roller wheel diameter

80 mm

Fork roller width

70 mm

Lift

Lift height

3500 mm

Free lift

yes

Free lift height

1800 mm

Lift motor power

2,5 kW

Lift speed, unladen

0,22 m/s

Lowering speed, unladen

0,25 m/s

Mast type

Duplex

Lift type

electric

Drive

Drive motor power

0,75 kW

Travel speed, unladen

4,5 km/h

Gradeability, unladen

10 %

Drive

electric

Brake

electromagnetic brake

Battery

Battery type

AGM

Battery capacity

71 Ah

Voltage

24 V

Battery voltage

12 V

Battery quantity

2

Battery charger

integrated

Delivery

Special transport

Delivered as

rolling (fully assembled)

Delivery requirements

Ramp or forklift required on site for unloading from truck

Links

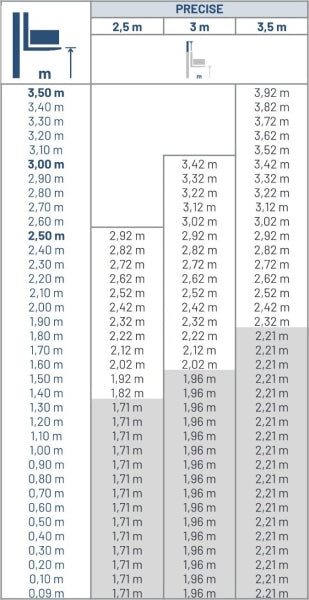

Mast height table

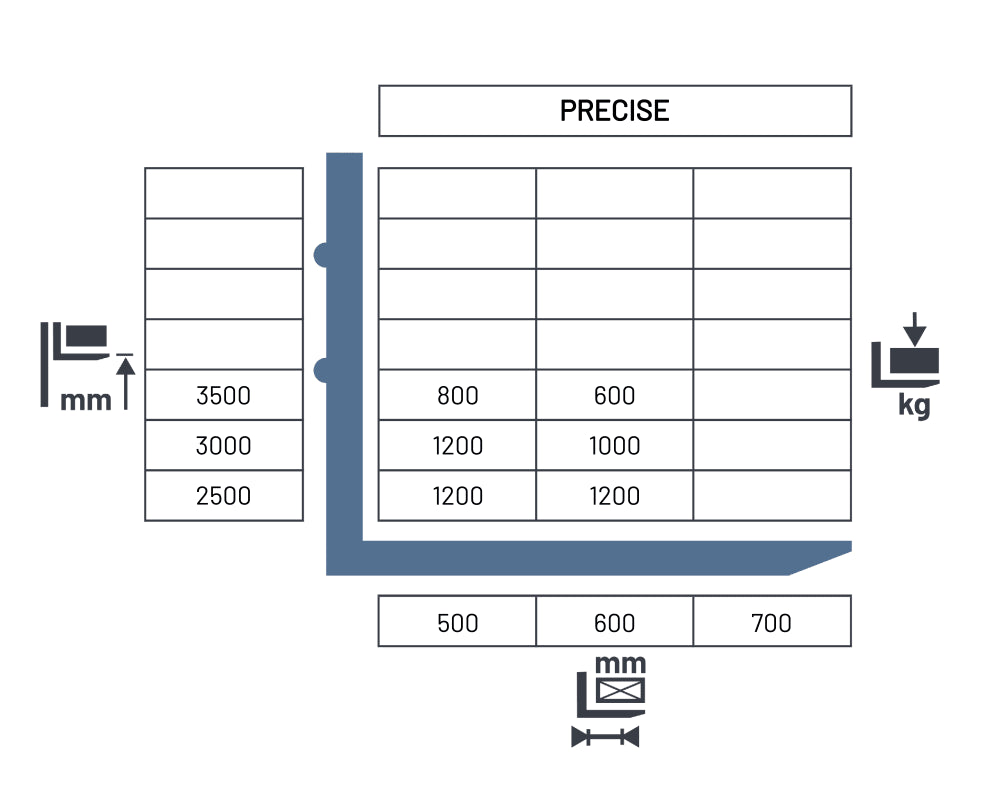

Capacity chart

Product brochure

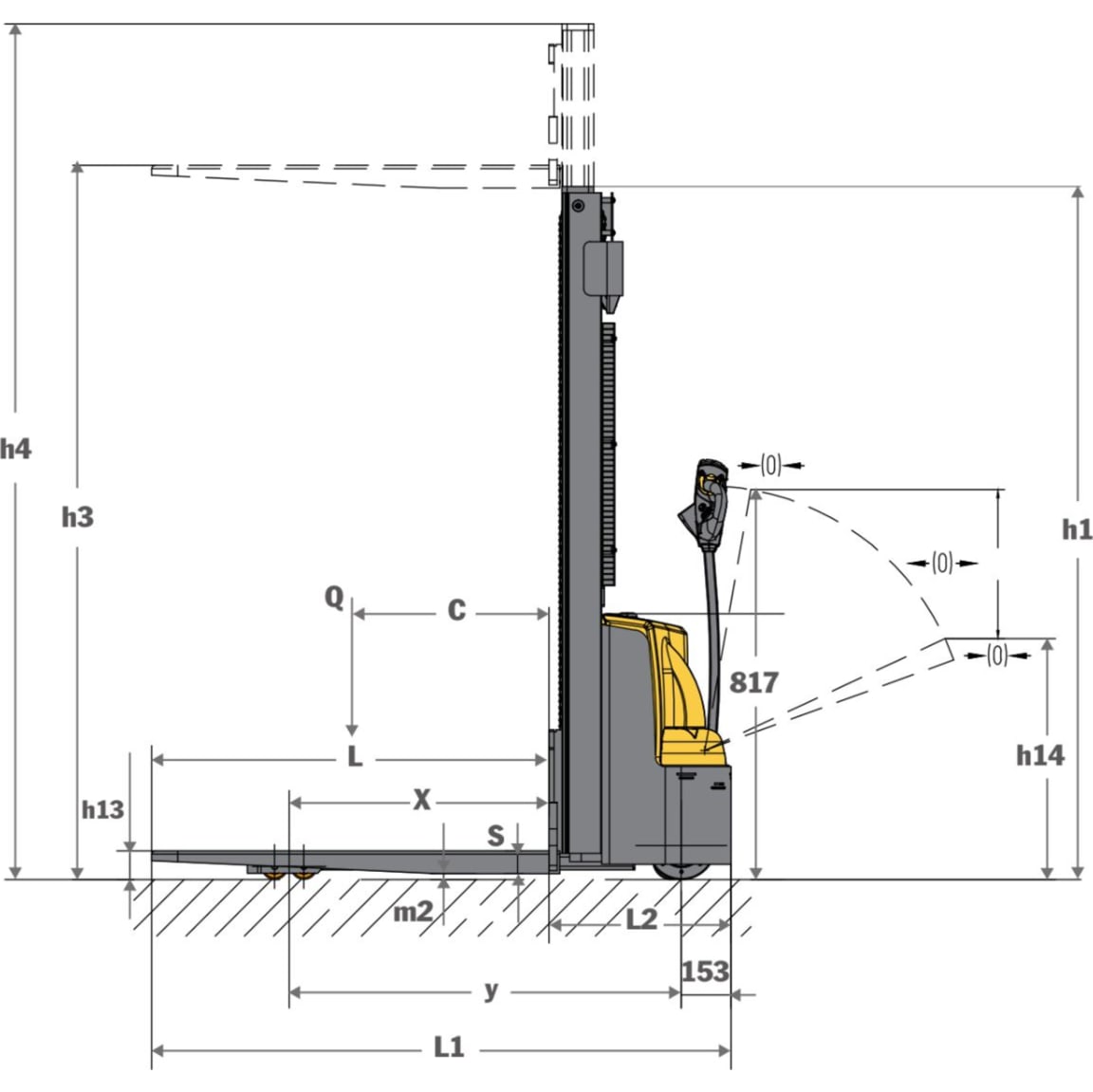

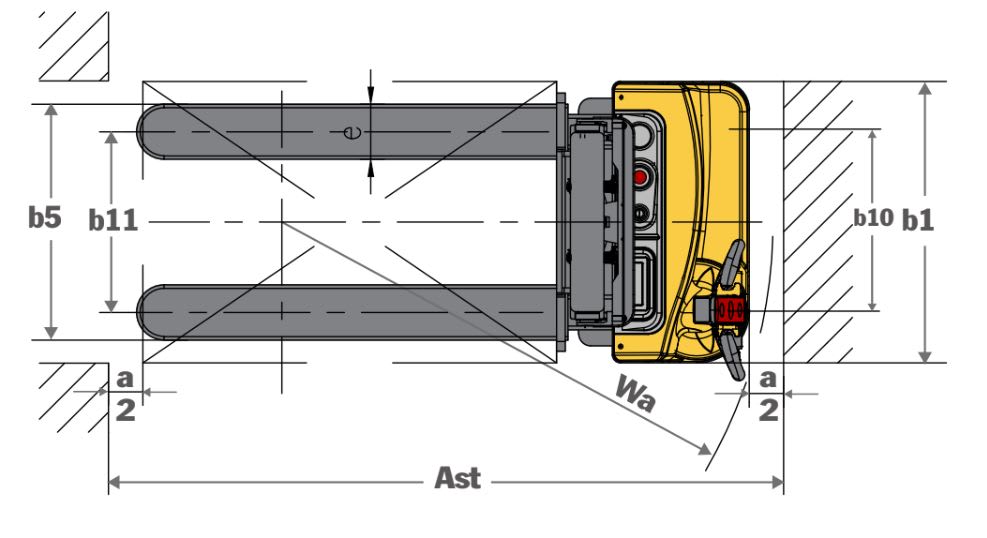

Dimensions

Fork length

1150 mm

l
Lift height

3500 mm

h3
Free lift height

1800 mm

h2
Load centre

600 mm

c
Lift height, effective

3410 mm

h12
Height, lowered

2210 mm

h1
Height, extended

3917 mm

h4
Length

1730 mm

l1
Ground clearance

30 mm

m2
Ground clearance, outer

90 mm

h13
Wheelbase

1210 mm

y

Width

820 mm

b1
Fork width, outer distance

560 mm

b5
Fork width, single fork

160 mm

e
Aisle width for 1200x800

2194 mm

Ast
Turning radius

1425 mm

Wa
