Elektro-Dreiradstapler EASY-L für 4,8m 1

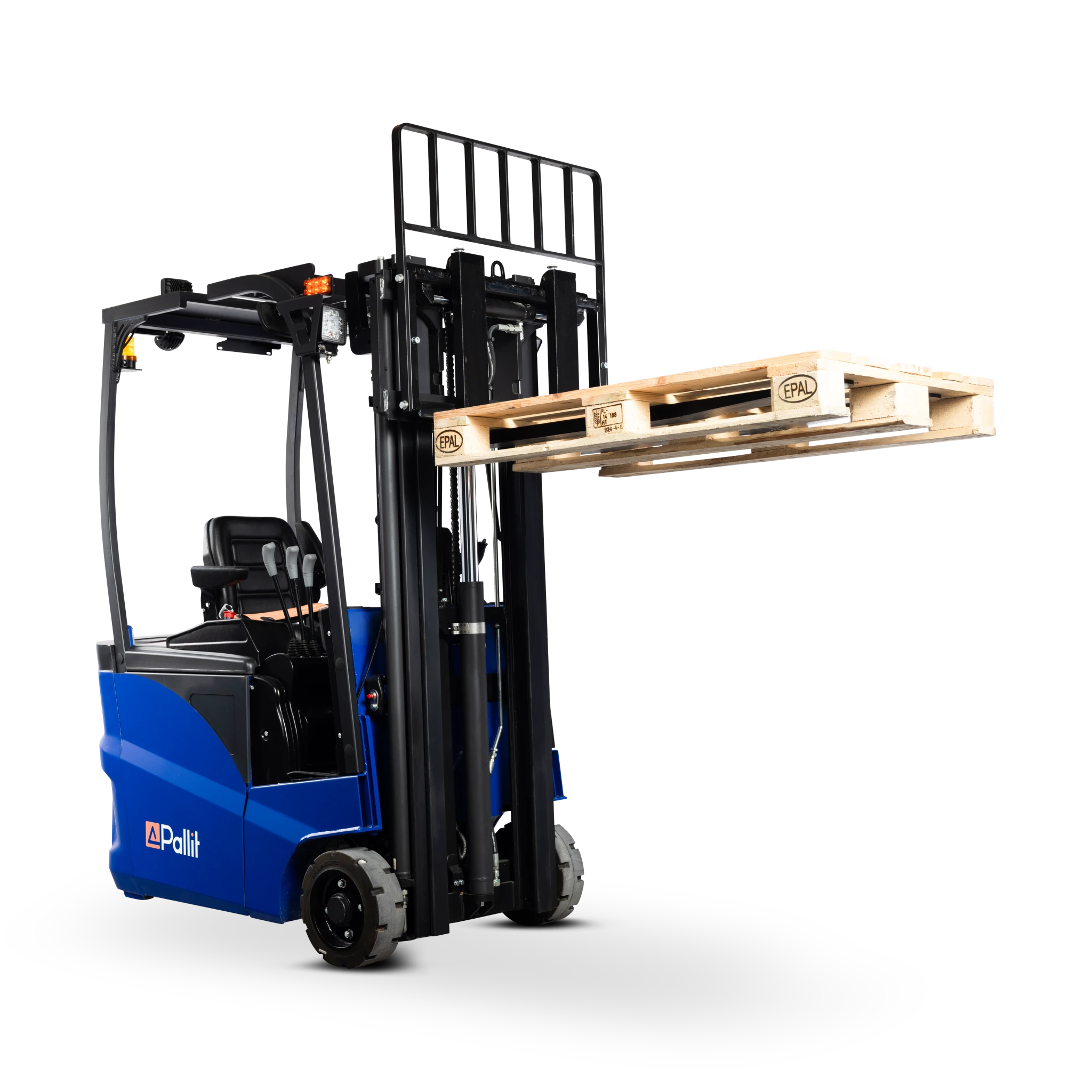

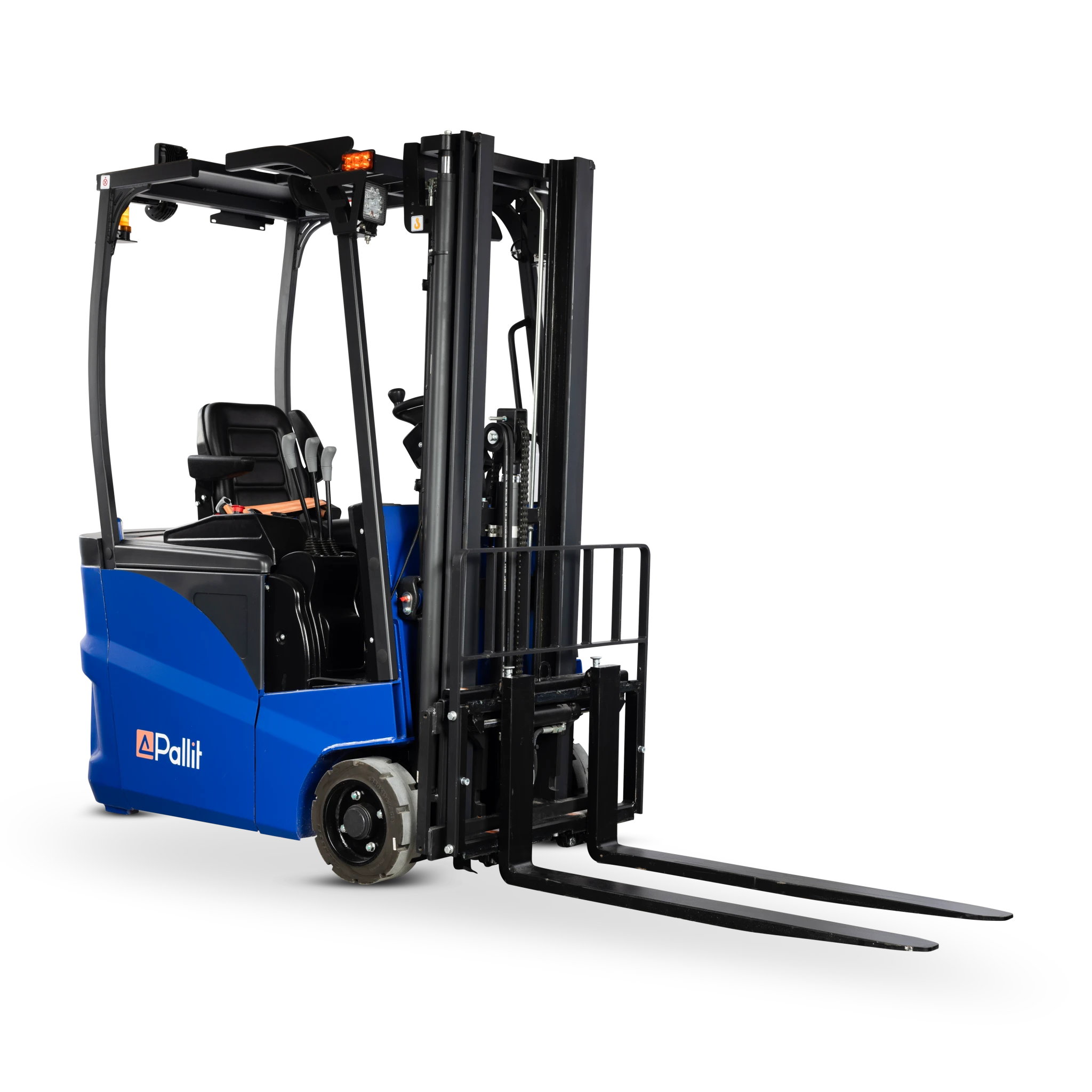

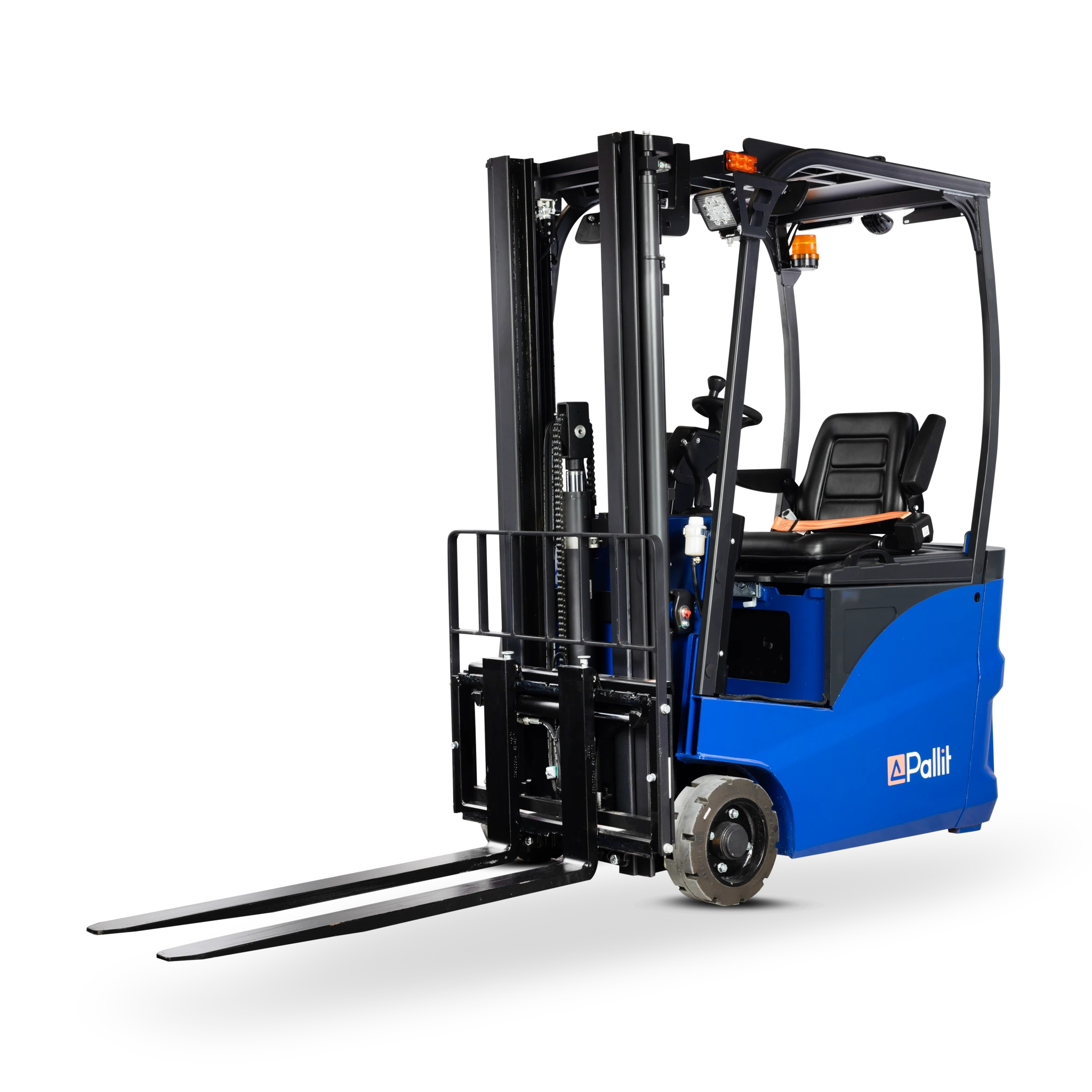

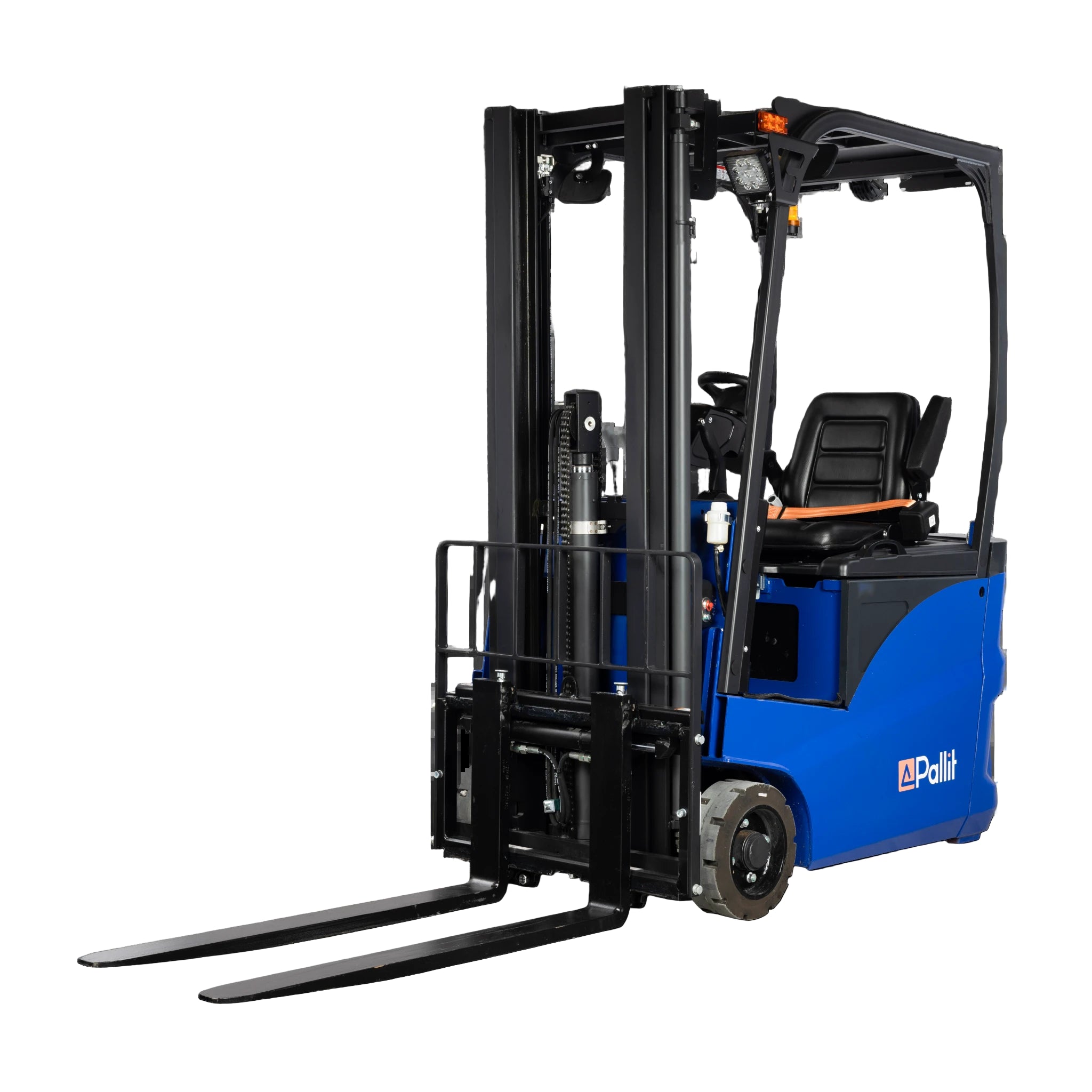

Electric three-wheel forklift EASY-M for 1.2t to 4m

A manoeuvrable electric forklift truck up to 1.2t in tight spaces. Affordable as always.
18.245,00 € 21.894,00 € VAT included

Available from: Sunday, 17 August

SKU 10010887-0

Questions? We’re here to help you

0800 941615

Our EASY-M is a three-wheel forklift for indoor use in confined spaces. It is compact, maneuverable, light, quiet and inexpensive. The EASY series is one of the cheapest forklifts on the market.

  • Load capacity: Loads up to 1,200 kg
  • lifting height: 4 m (4000 mm)
  • Full free lift: Lifting pallets without changing the forklift height
  • Drive: Powerful electric motor with front-wheel drive for high driving speeds

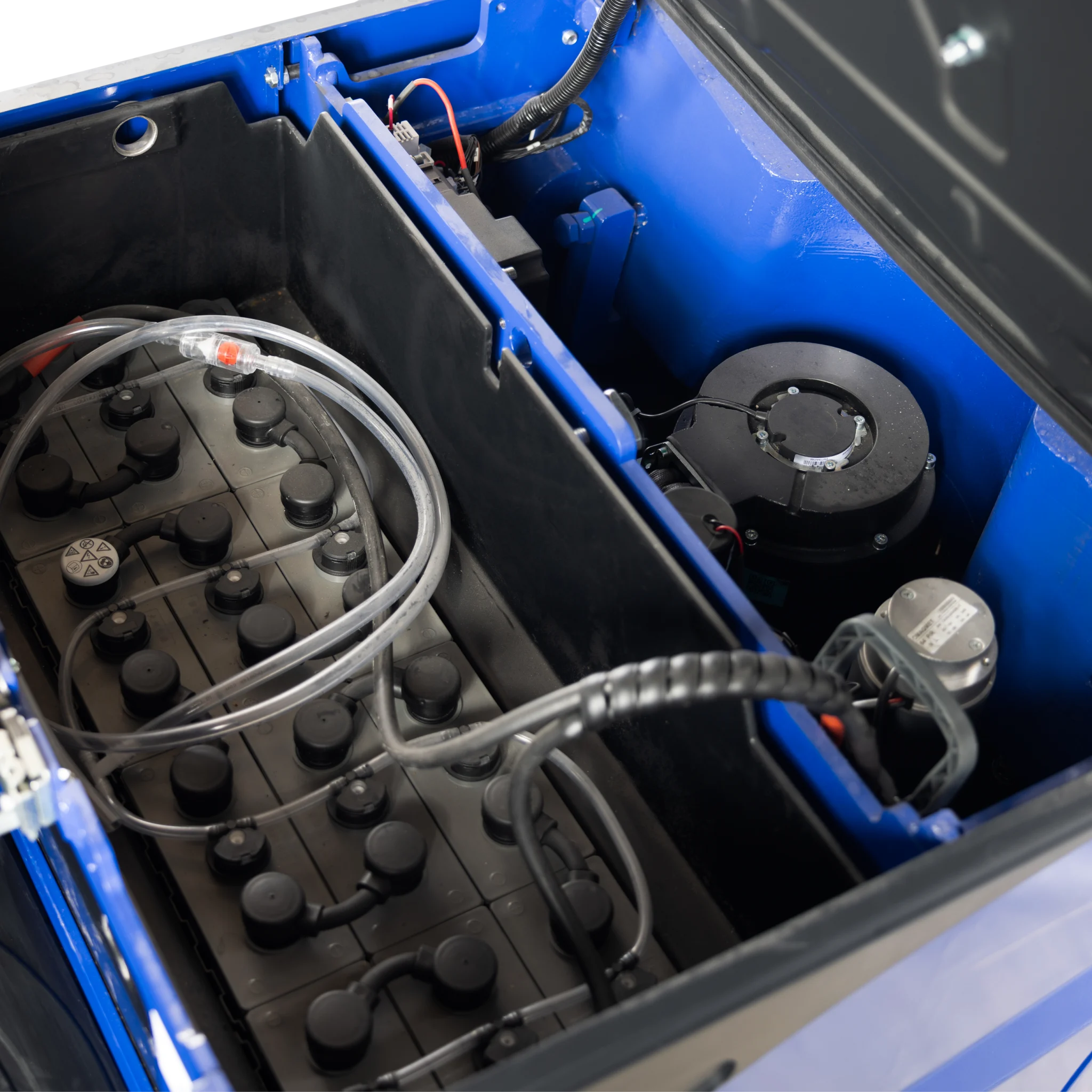

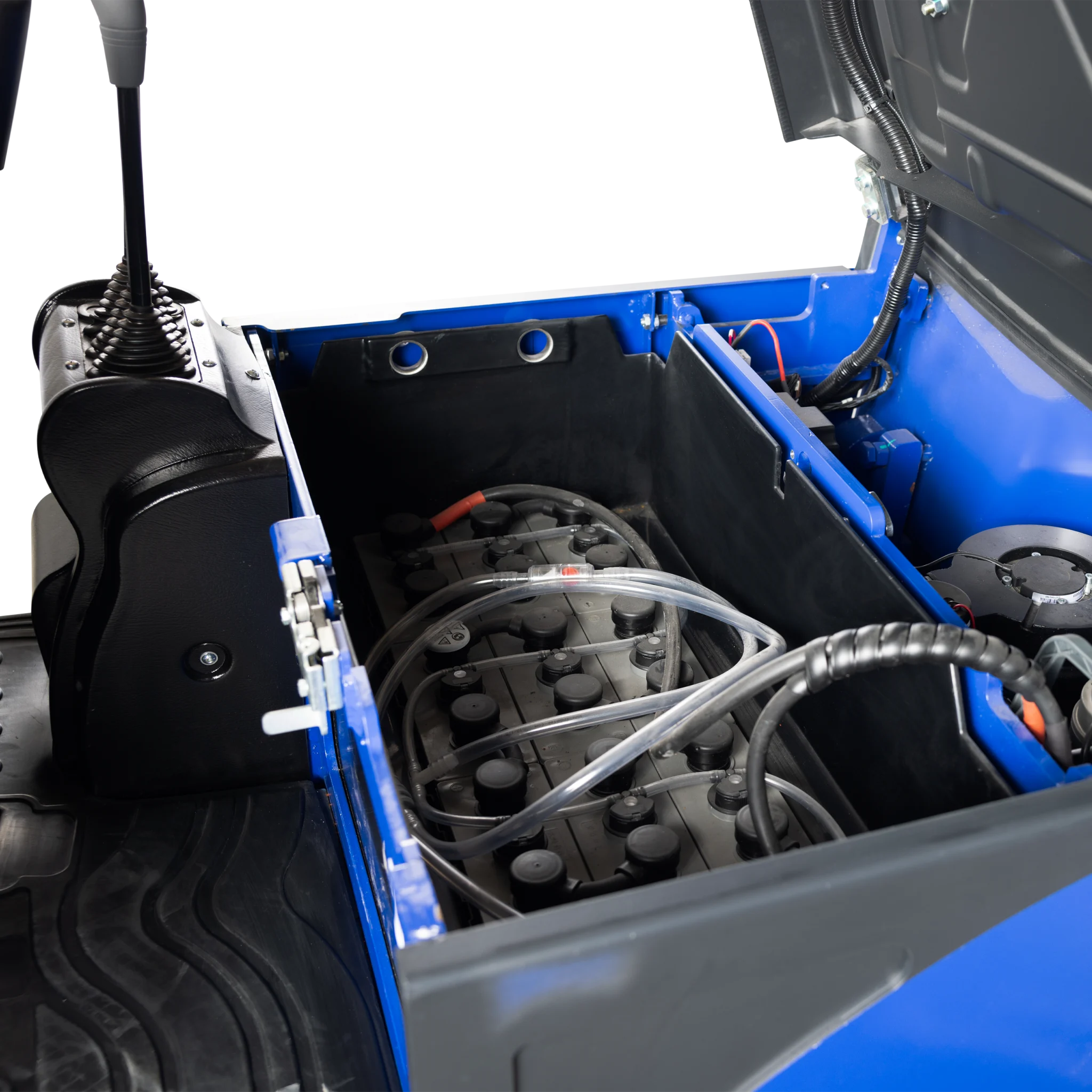

  • Battery : 280 Ah lead-acid battery with external charger ( 48V / 35A)
  • Control: Smooth acceleration and maneuvering without jerking thanks to the branded control unit from the Italian quality brand Zapi

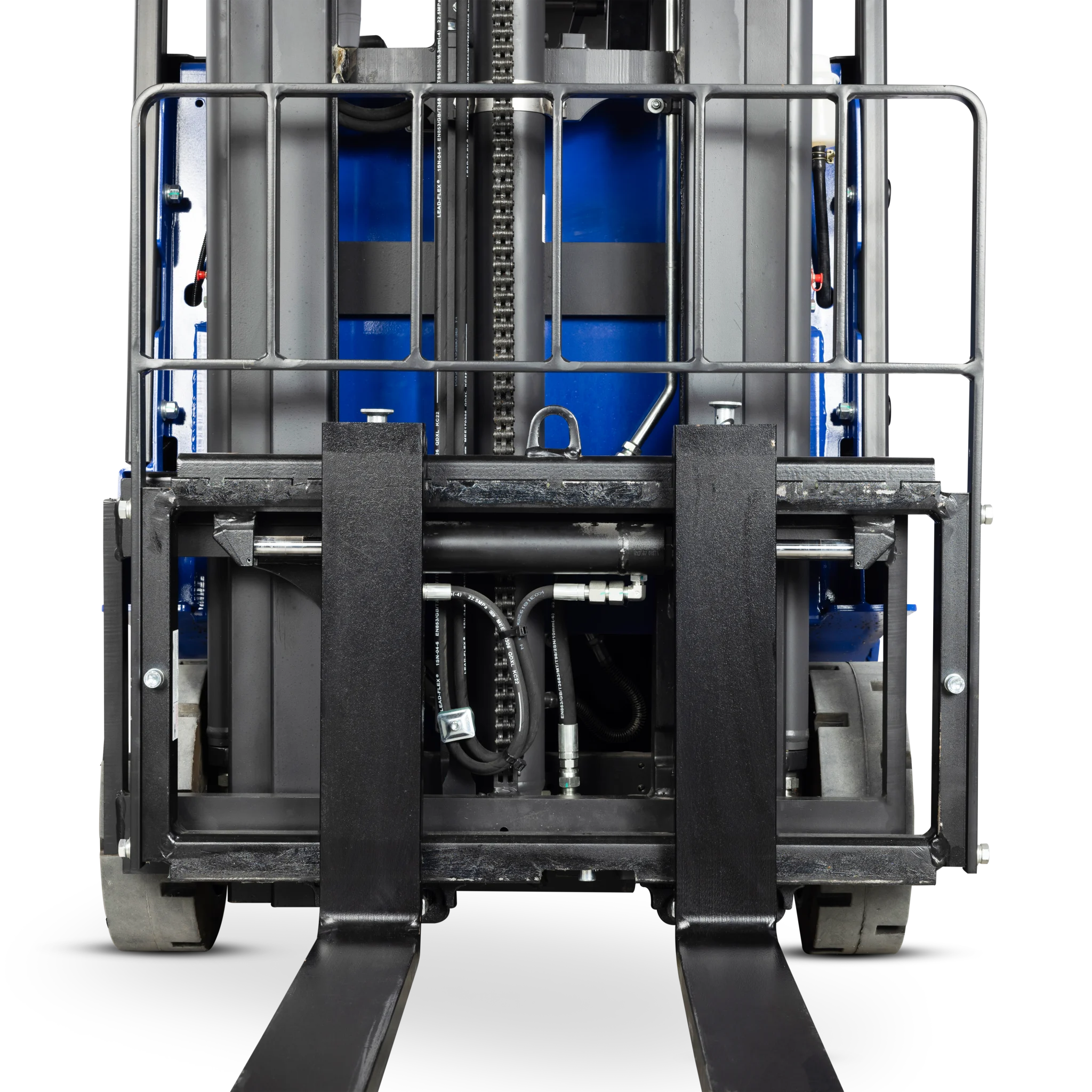

  • Cascade sideshift : Allows loads to be moved sideways - so the forklift does not have to be repositioned

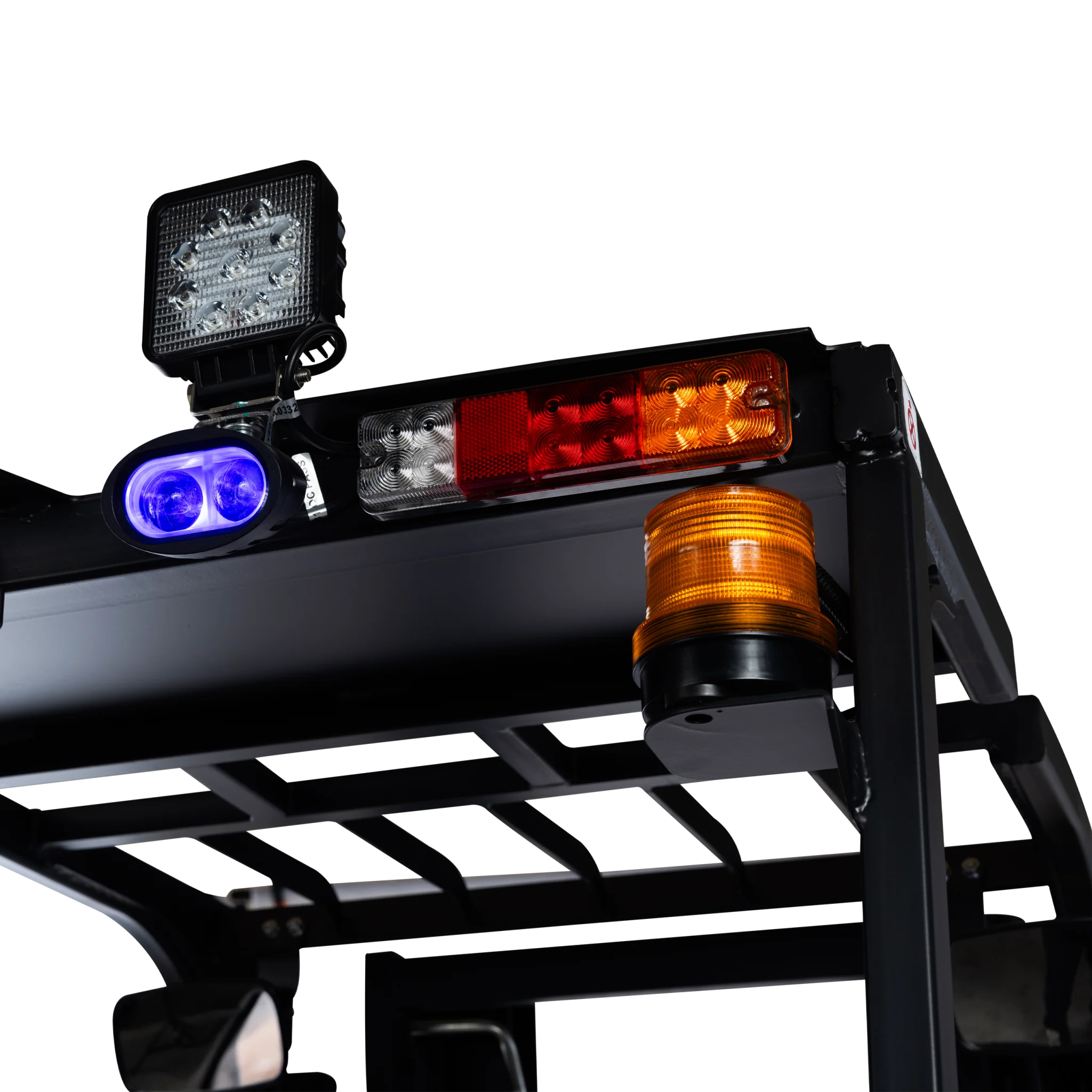

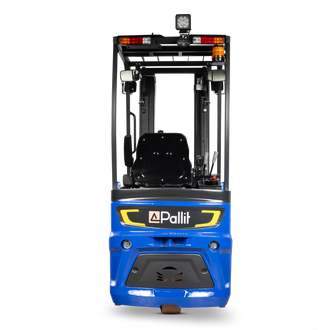

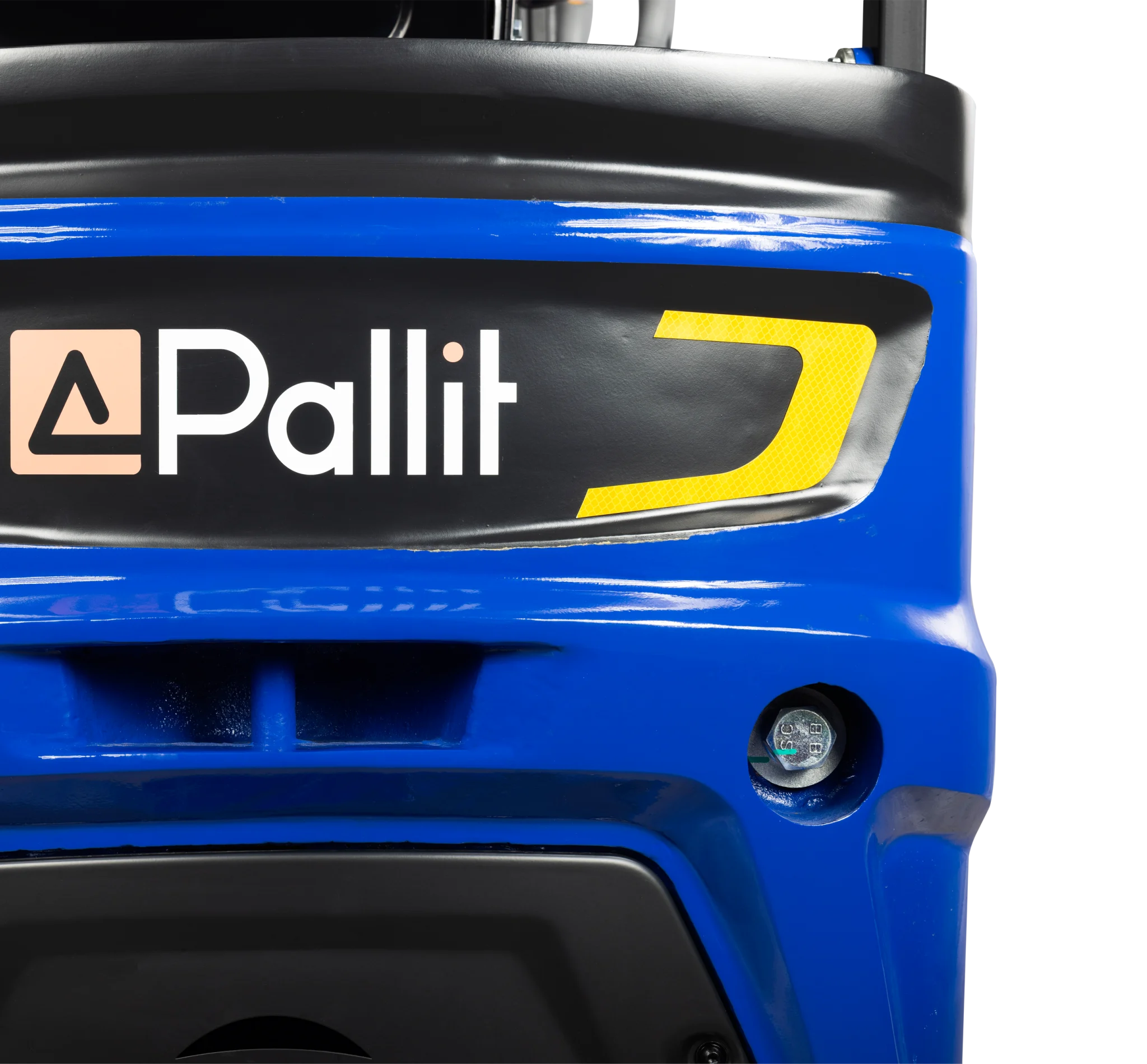

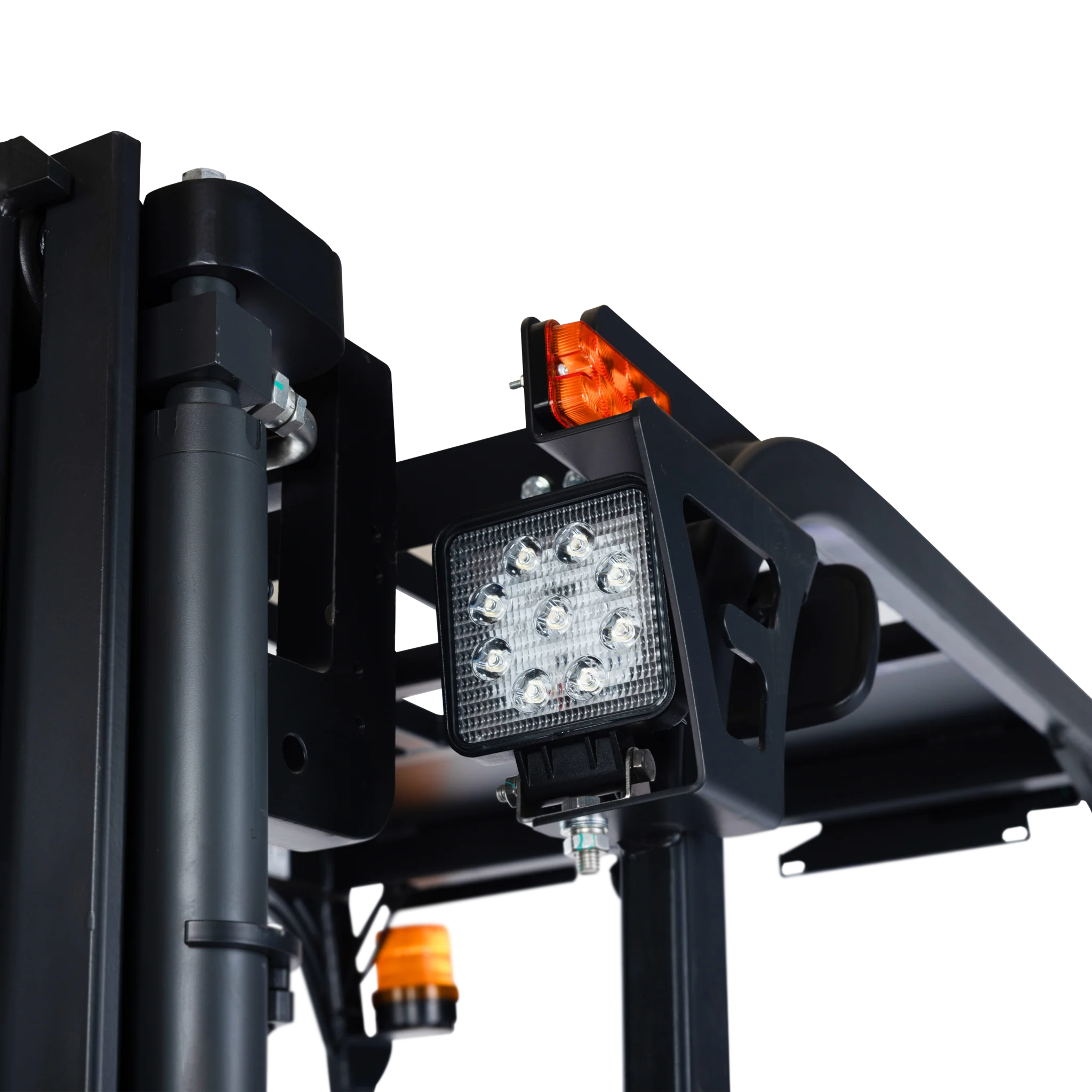

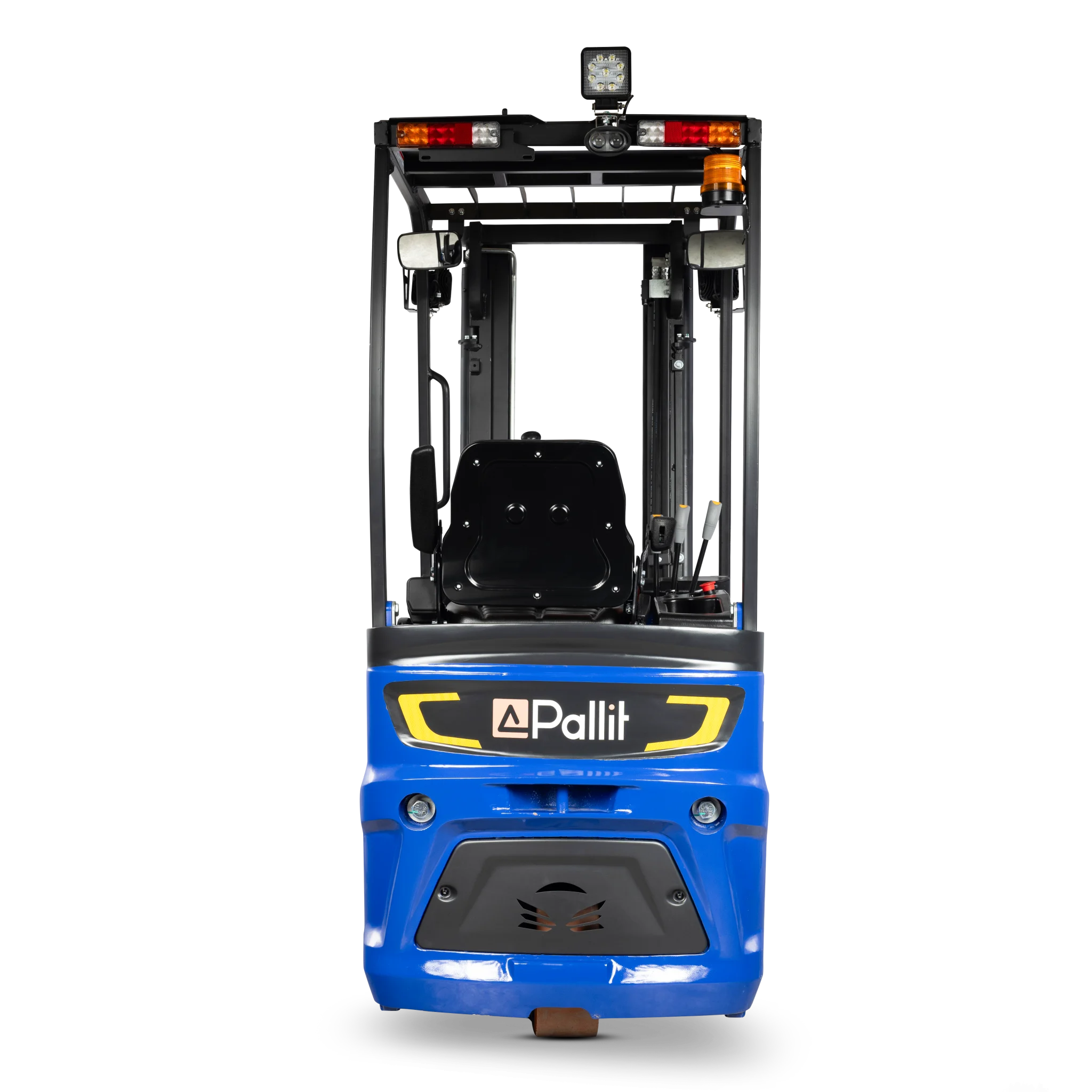

  • Safety: rearview mirror, LED taillights and numerous safety features, including emergency stop switch and OPS system
  • Tires: Solid rubber tires are durable and non-slip
  • Use: The EASY-M three-wheel forklift excels in confined spaces - in narrow aisles, warehouses with low ceiling heights, in containers and in trucks

Features

Elektro-Dreiradstapler EASY-L für 4,8m 5

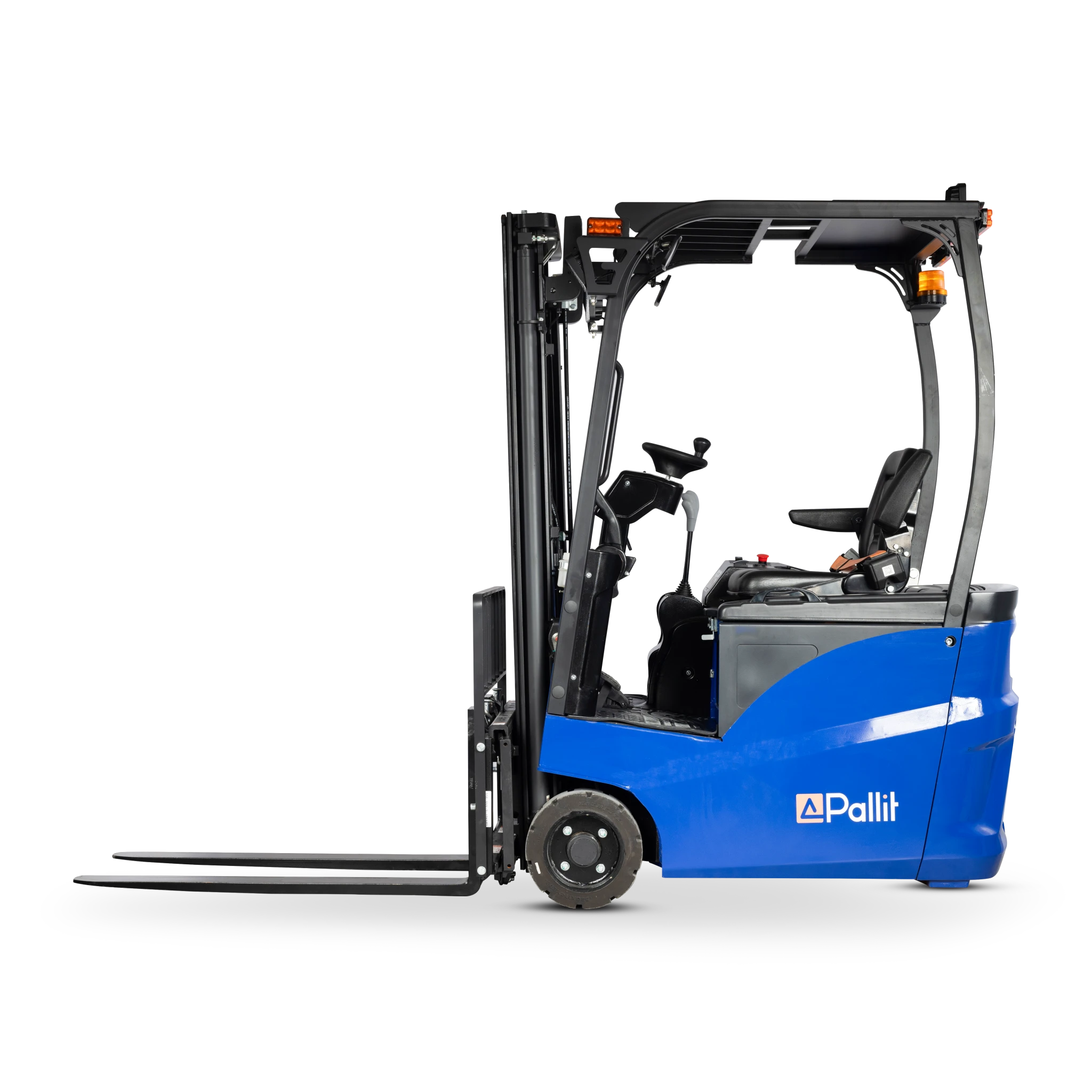

Mission

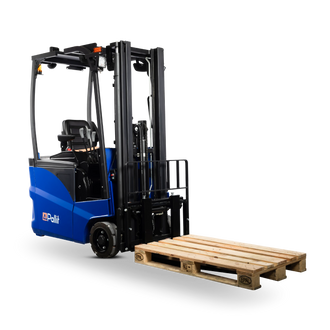

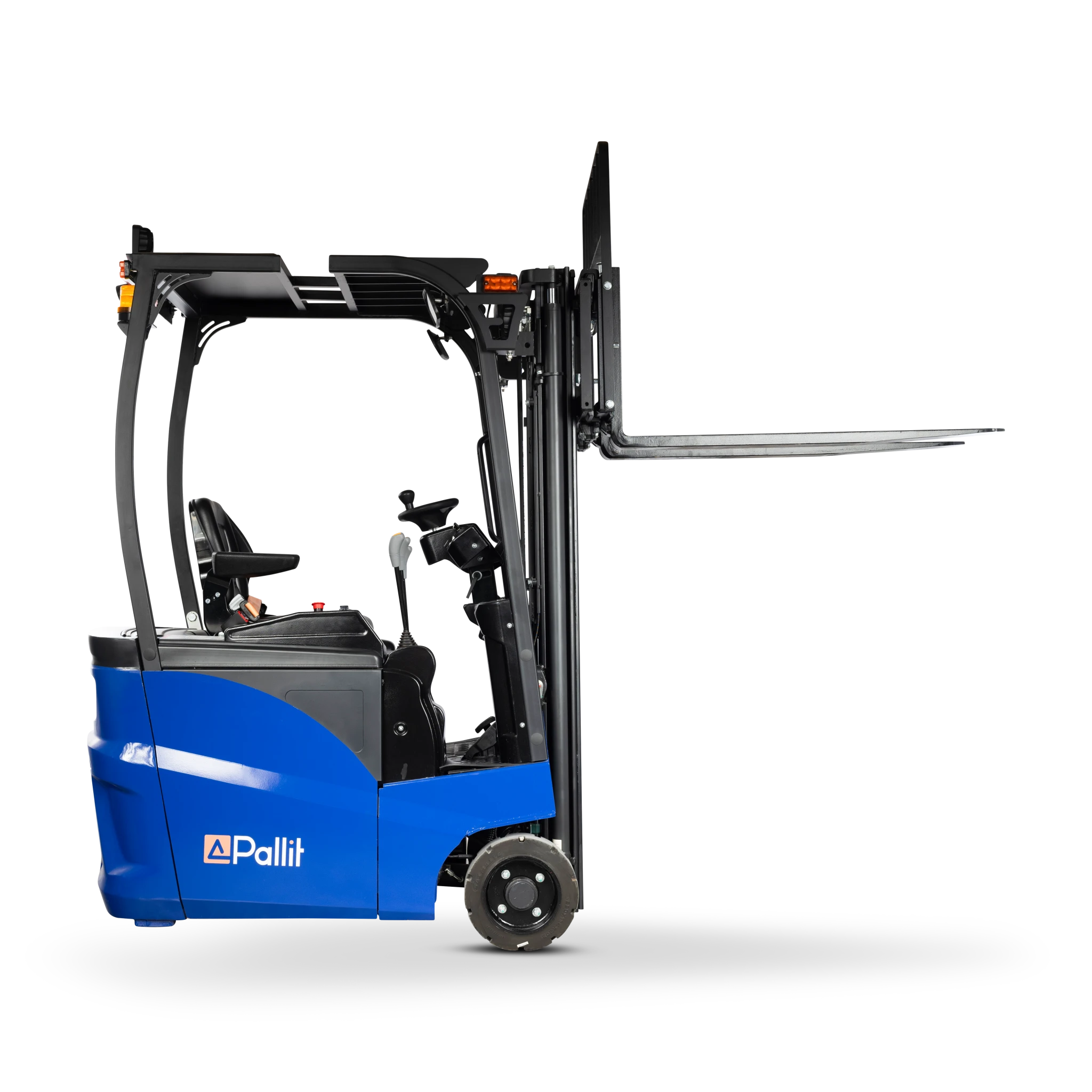

This electric forklift is a compact and maneuverable three-wheel front loader for narrow aisles, trucks and containers. Its electric motor is quiet and emission-free.
Elektro-Dreiradstapler EASY-L für 4,8m 1

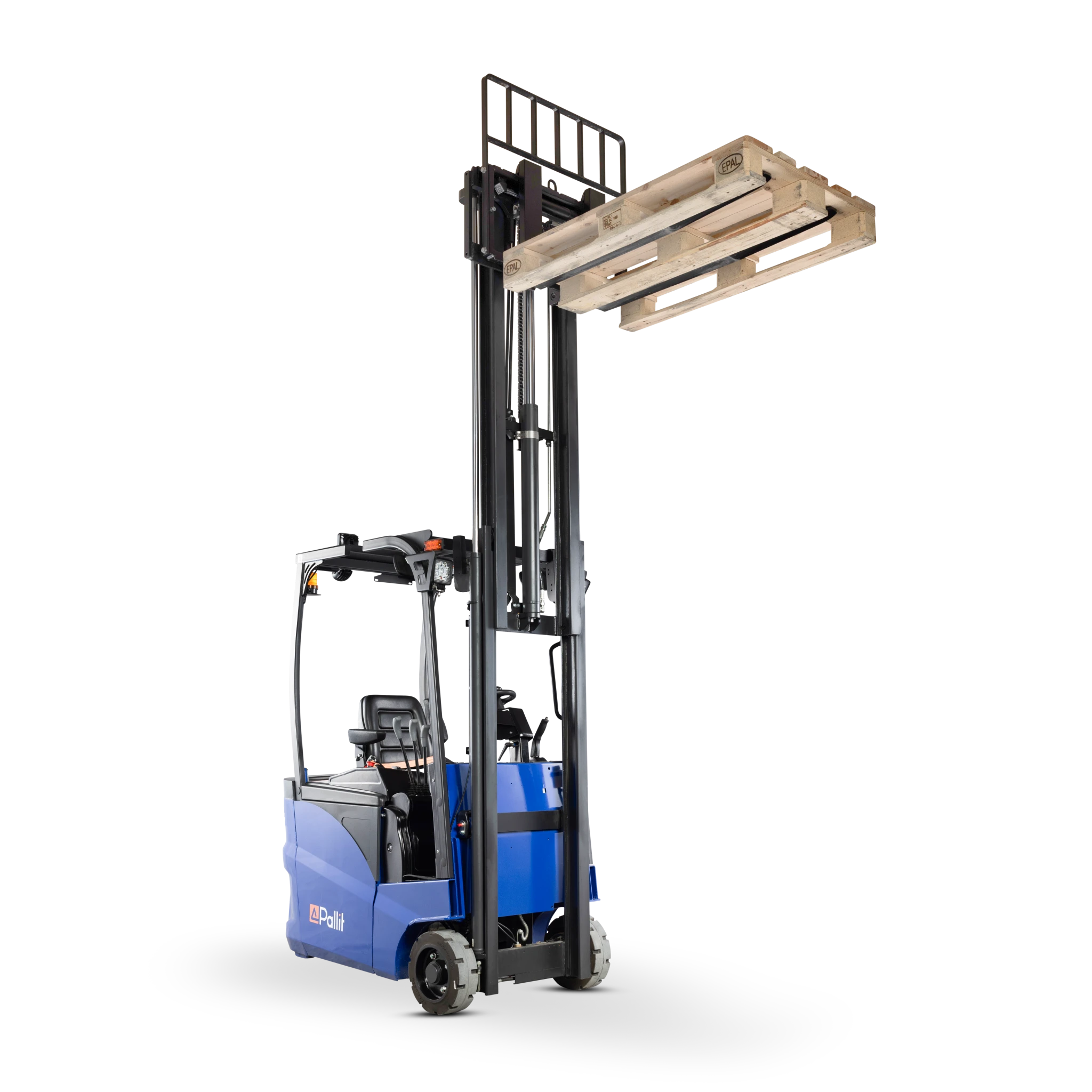

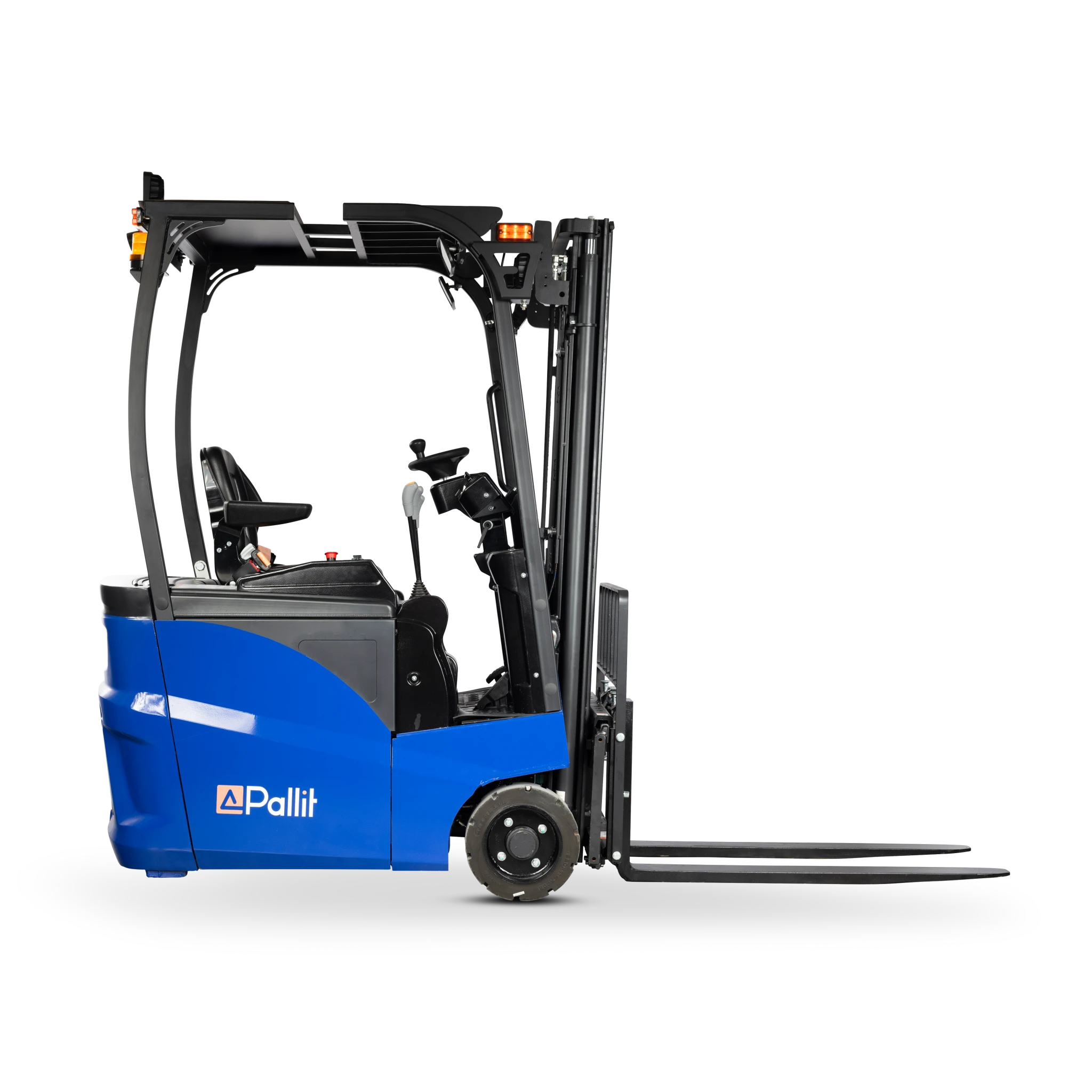

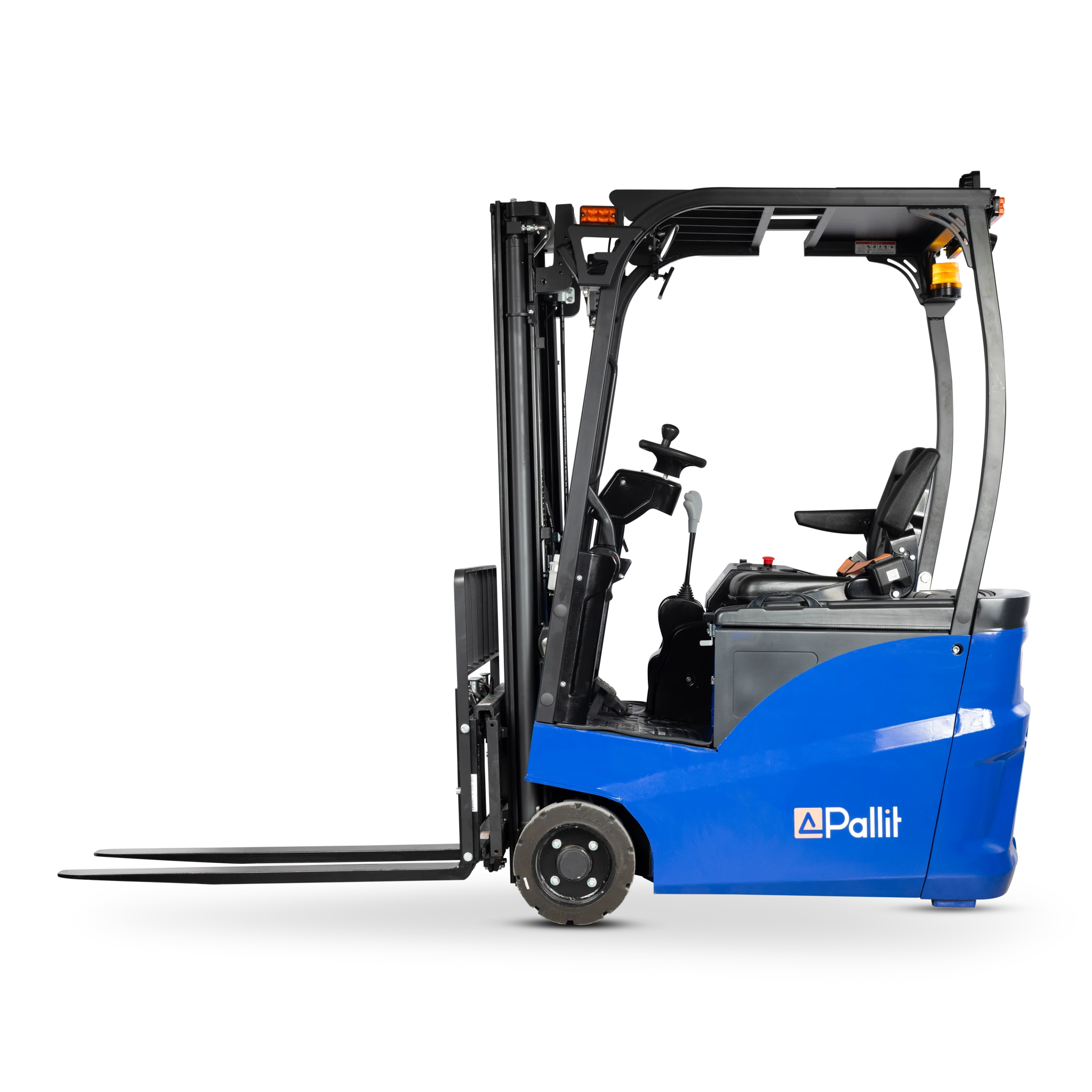

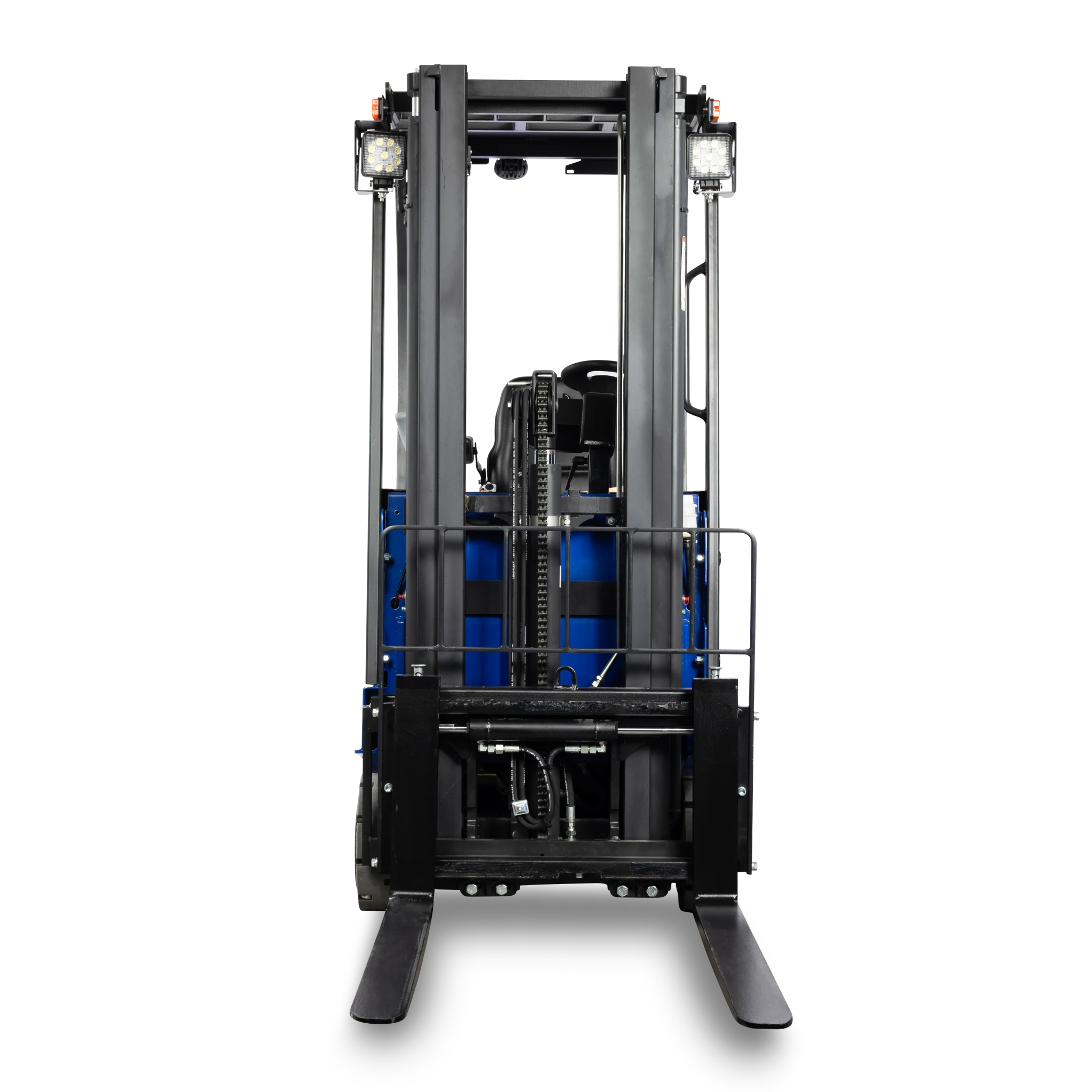

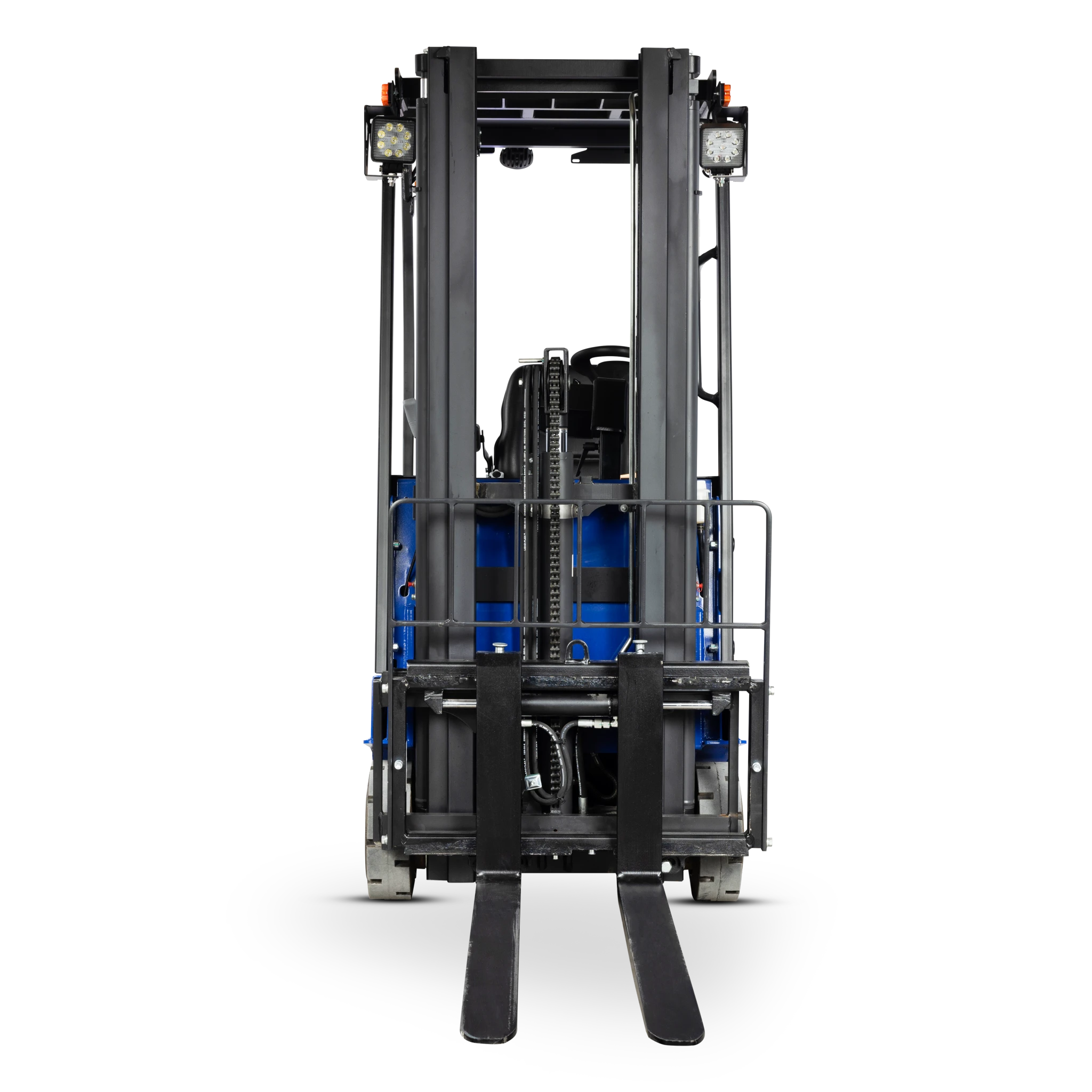

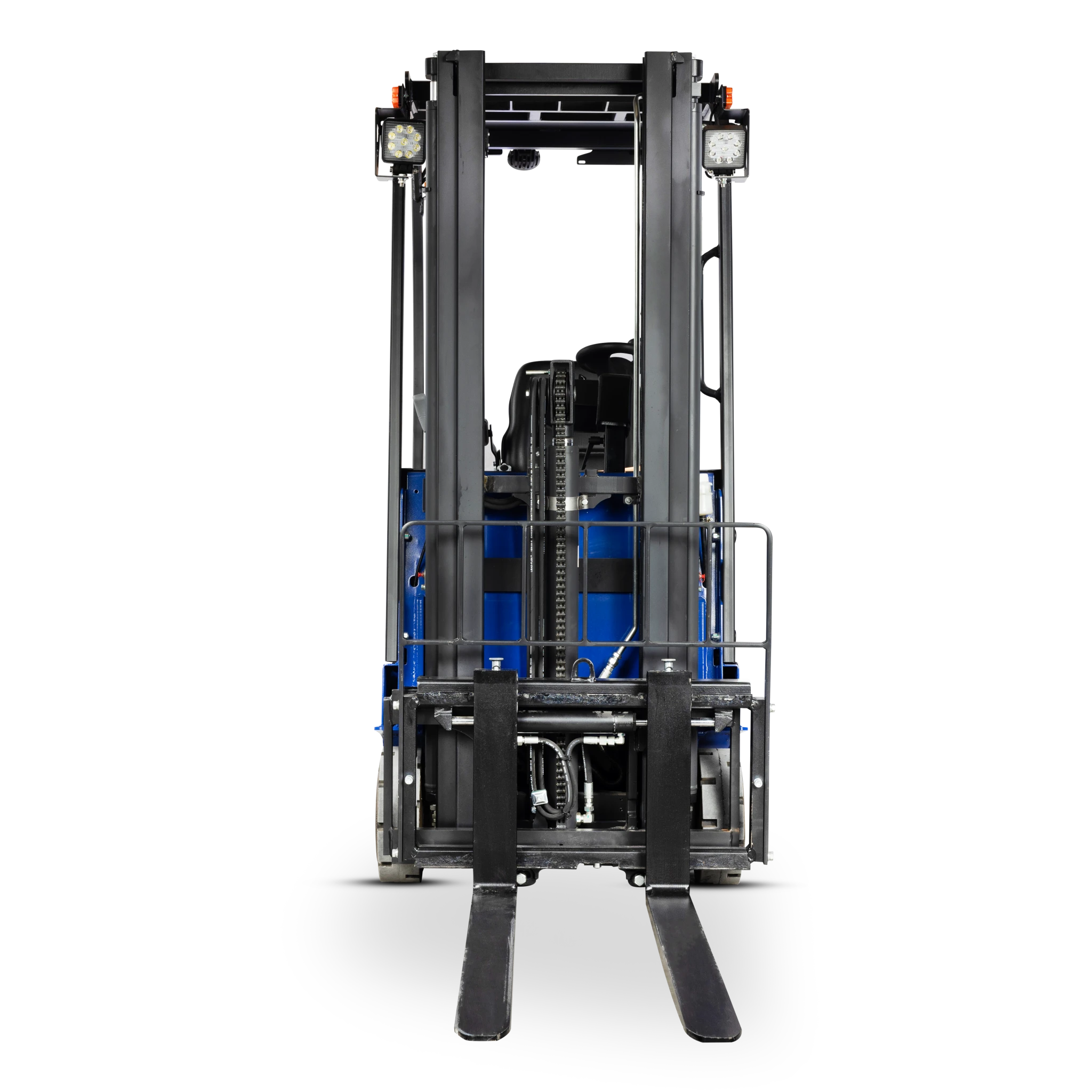

triplex mast

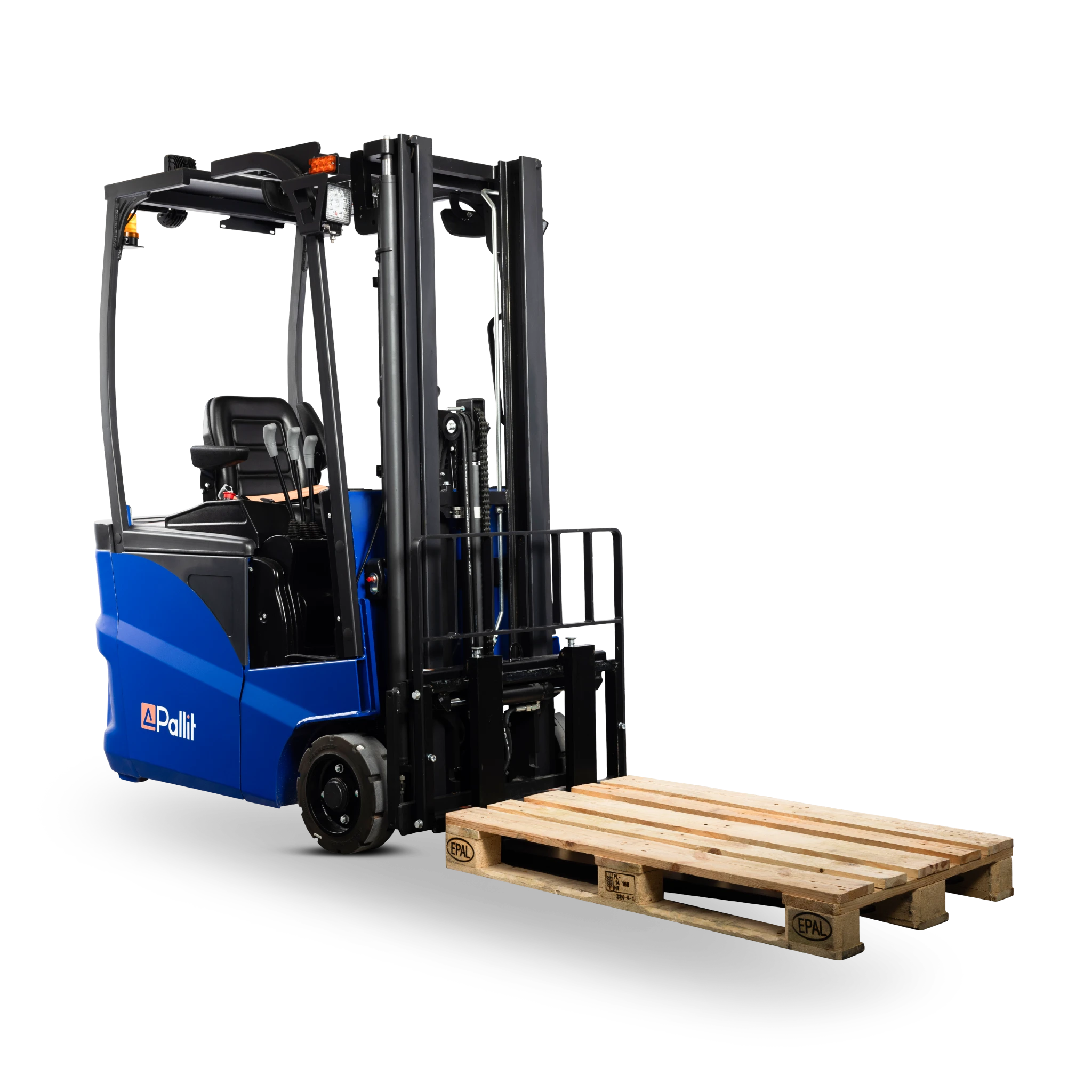

The EASY-M reaches a lifting height of 4000 mm. This makes it ideal for stacking, transporting, loading and unloading trucks and for storing and retrieving goods from pallet racks.
Elektro-Dreiradstapler EASY-L für 4,8m 3

Easy maneuvering

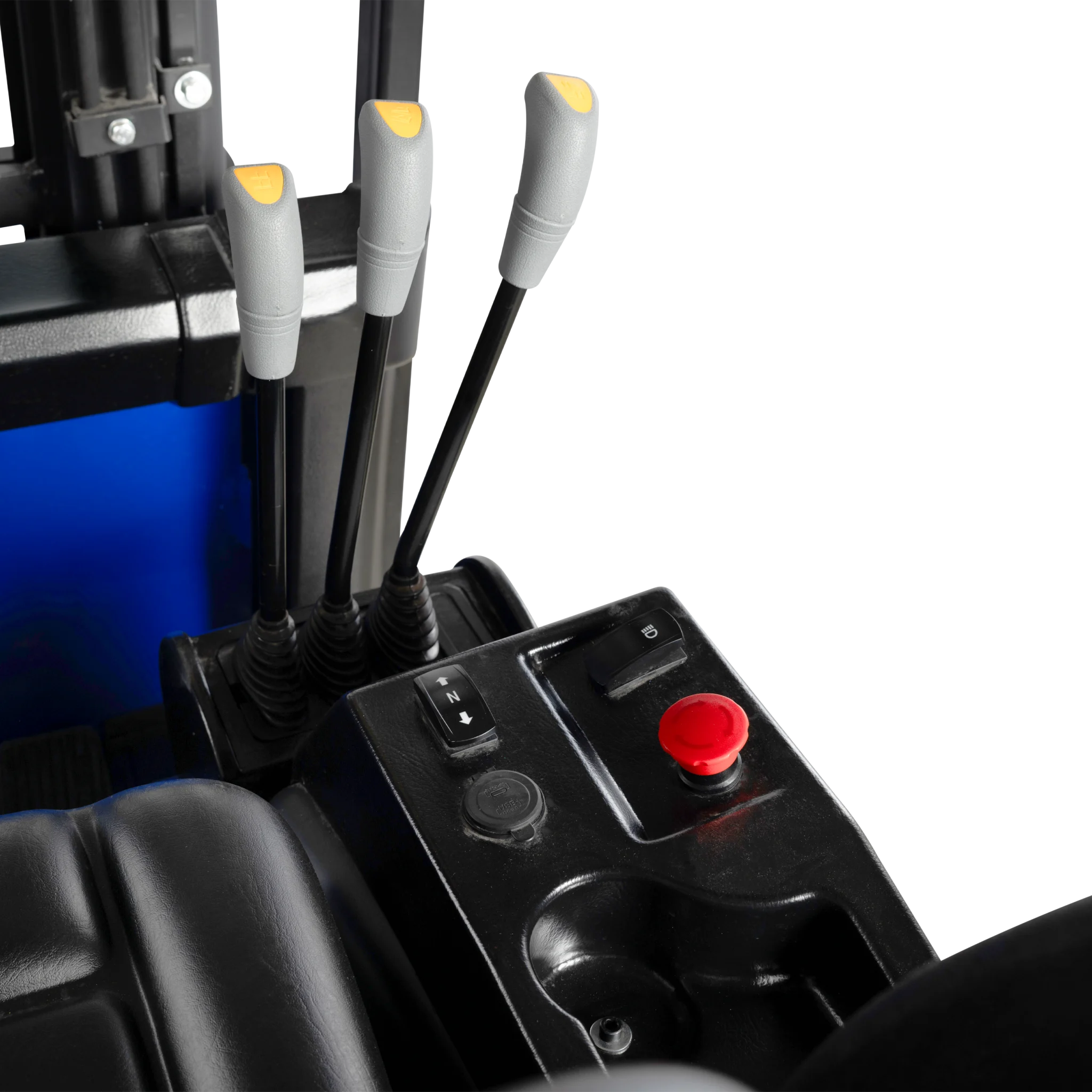

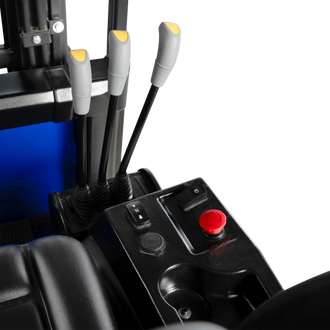

AC controller and MOSFET controller for easy driving, lifting and steering.
Elektro-Dreiradstapler EASY-L für 4,8m 5

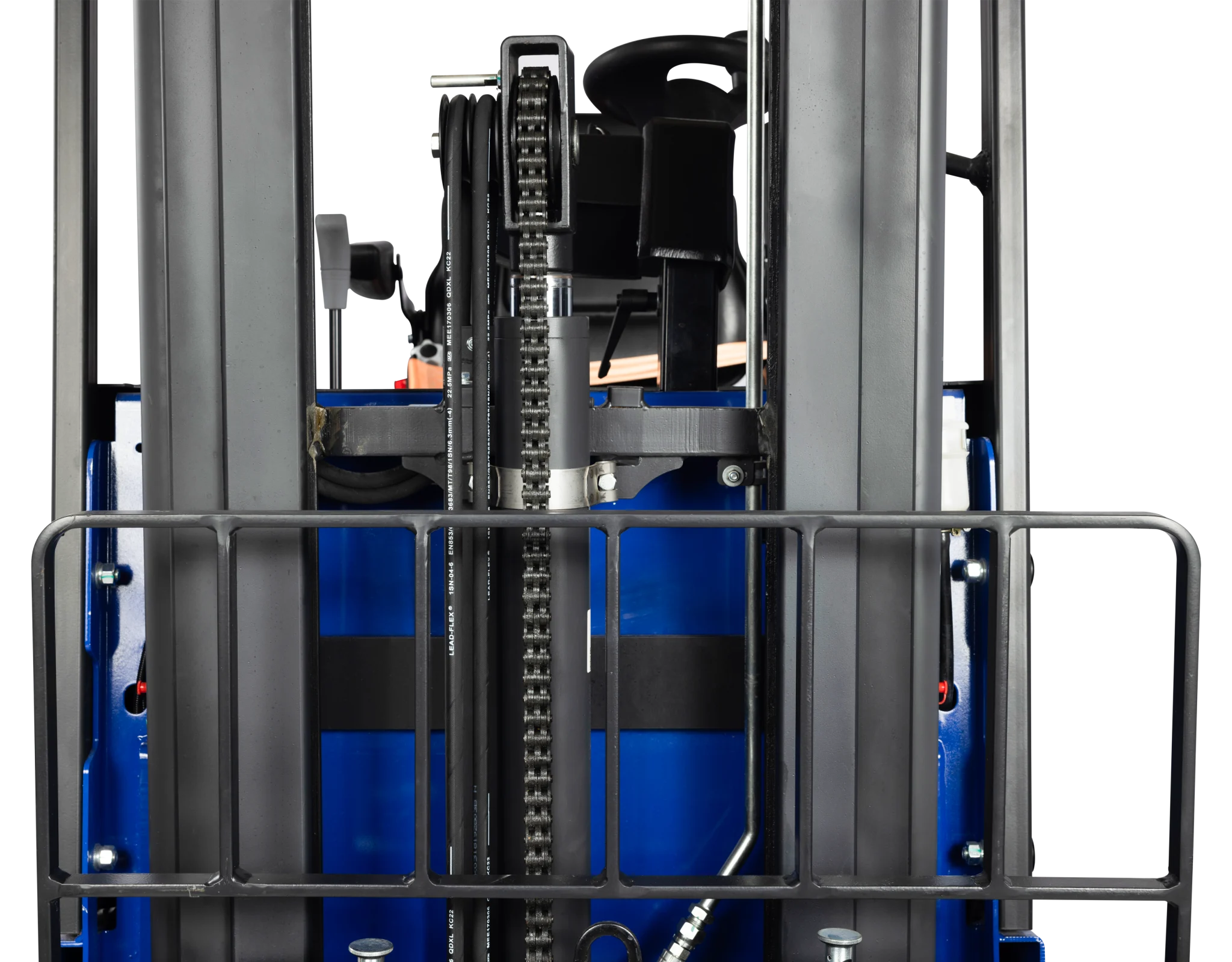

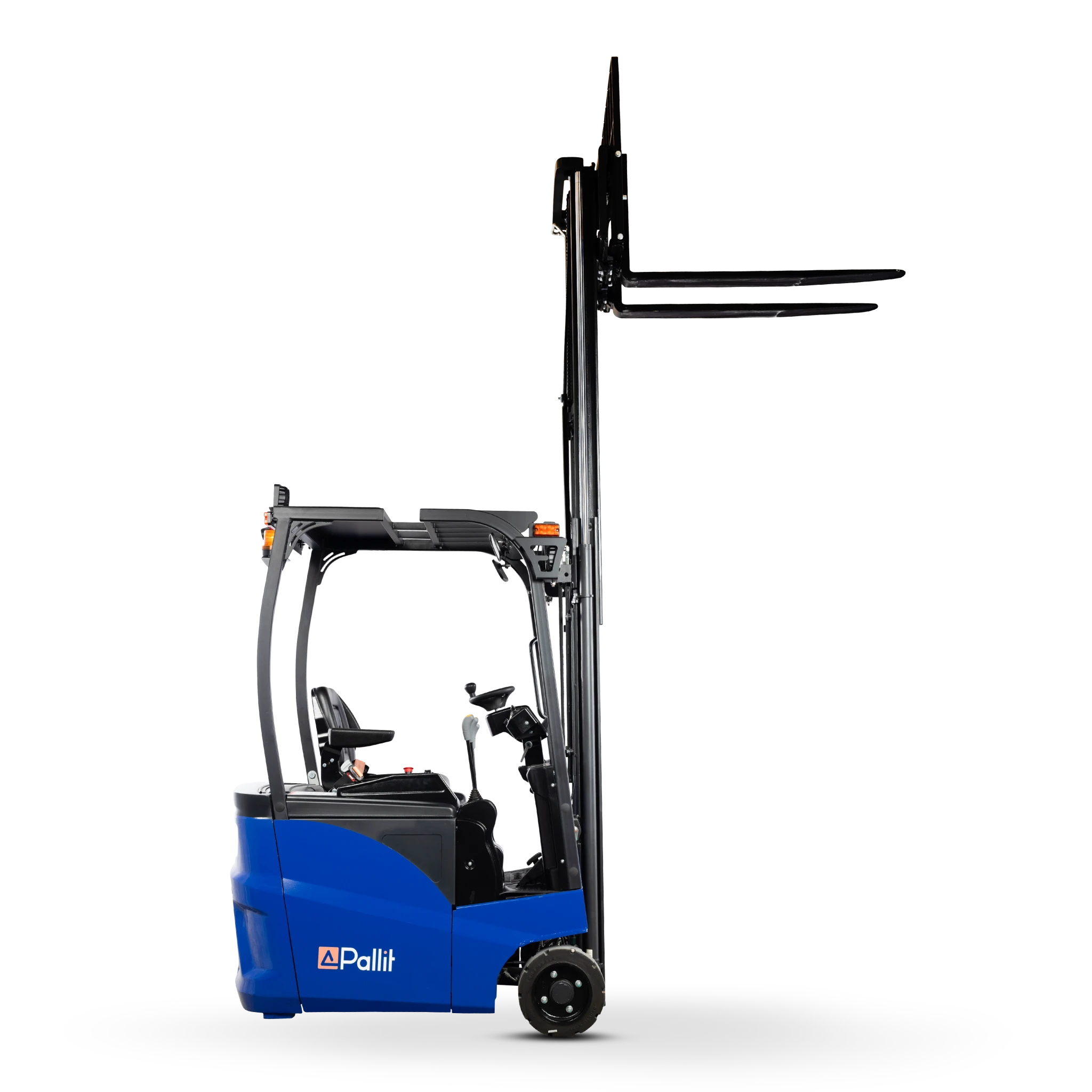

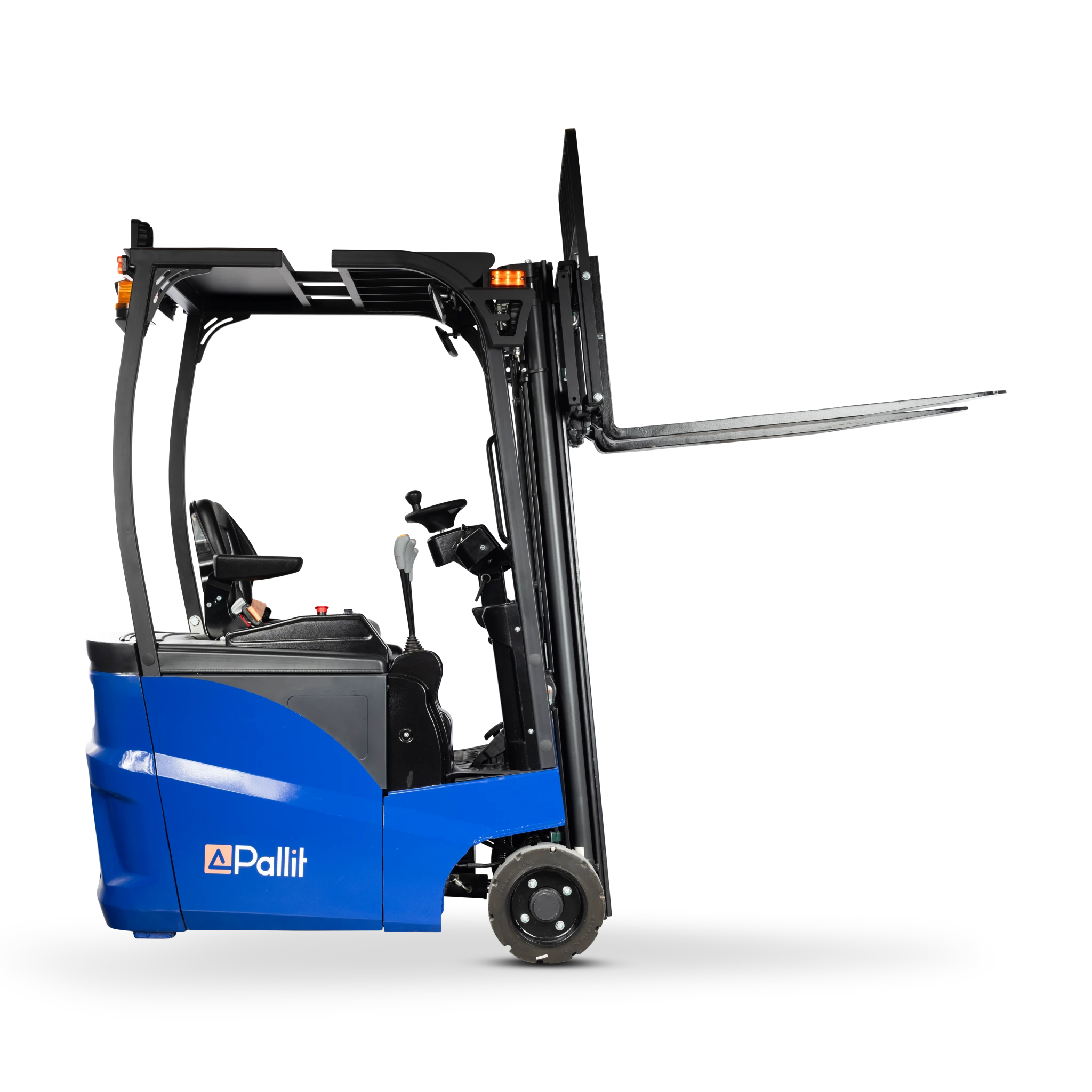

free lift

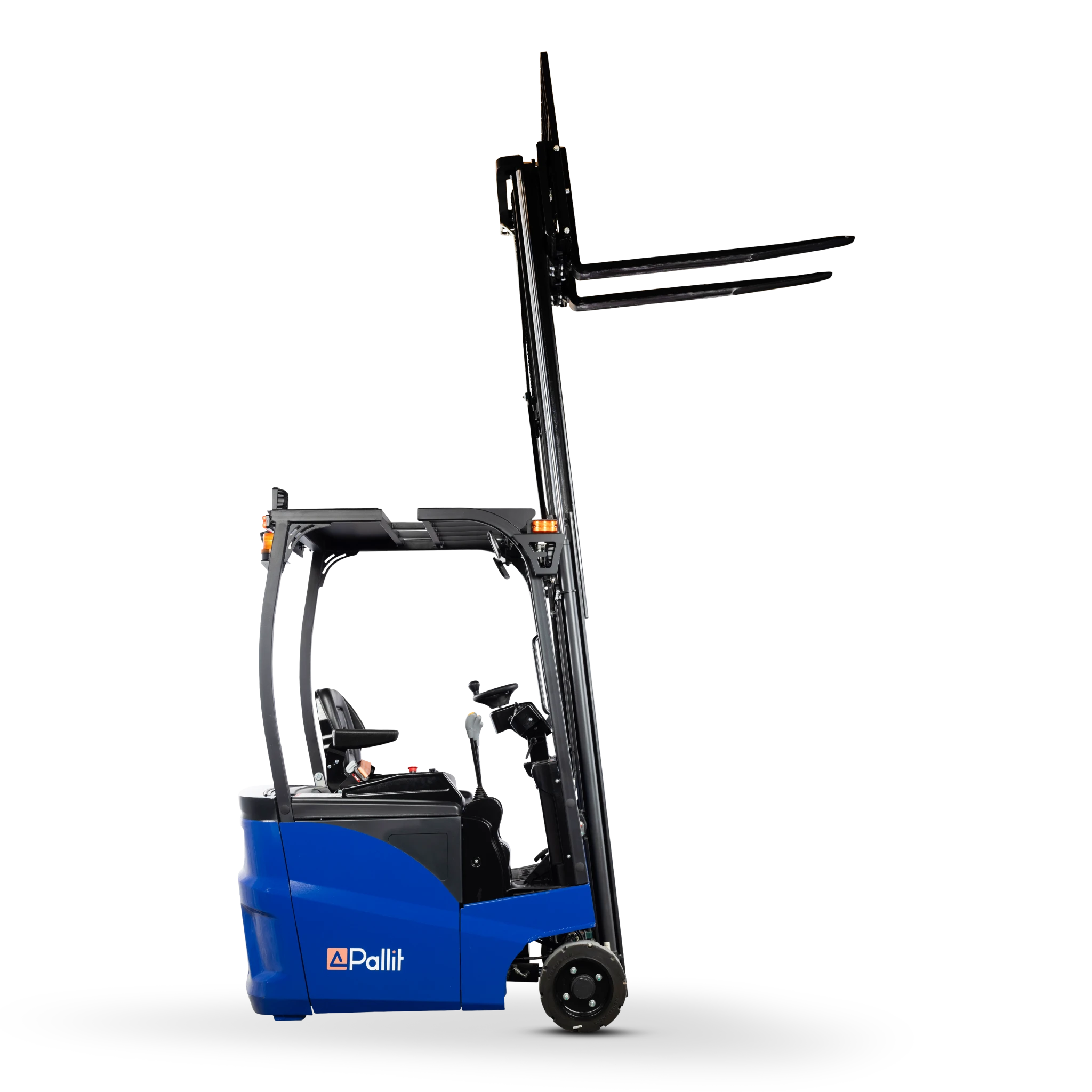

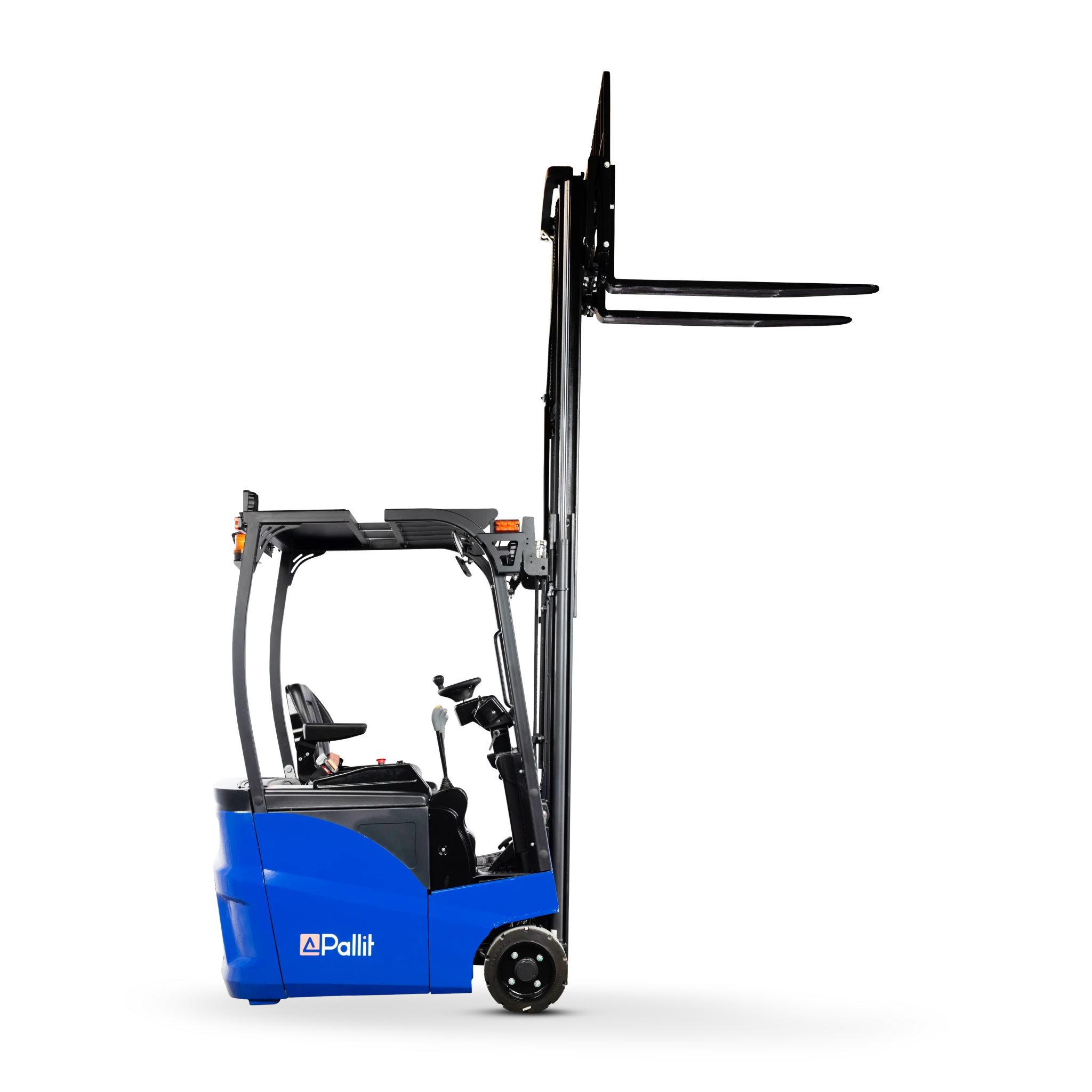

This three-wheel forklift has a free lift of 1,061 mm. This means that the lifting carriage can be raised to the height of the outer forklift frame at 2 m before the inner masts of the lifting frame extend.
Elektro-Dreiradstapler EASY-L für 4,8m 2

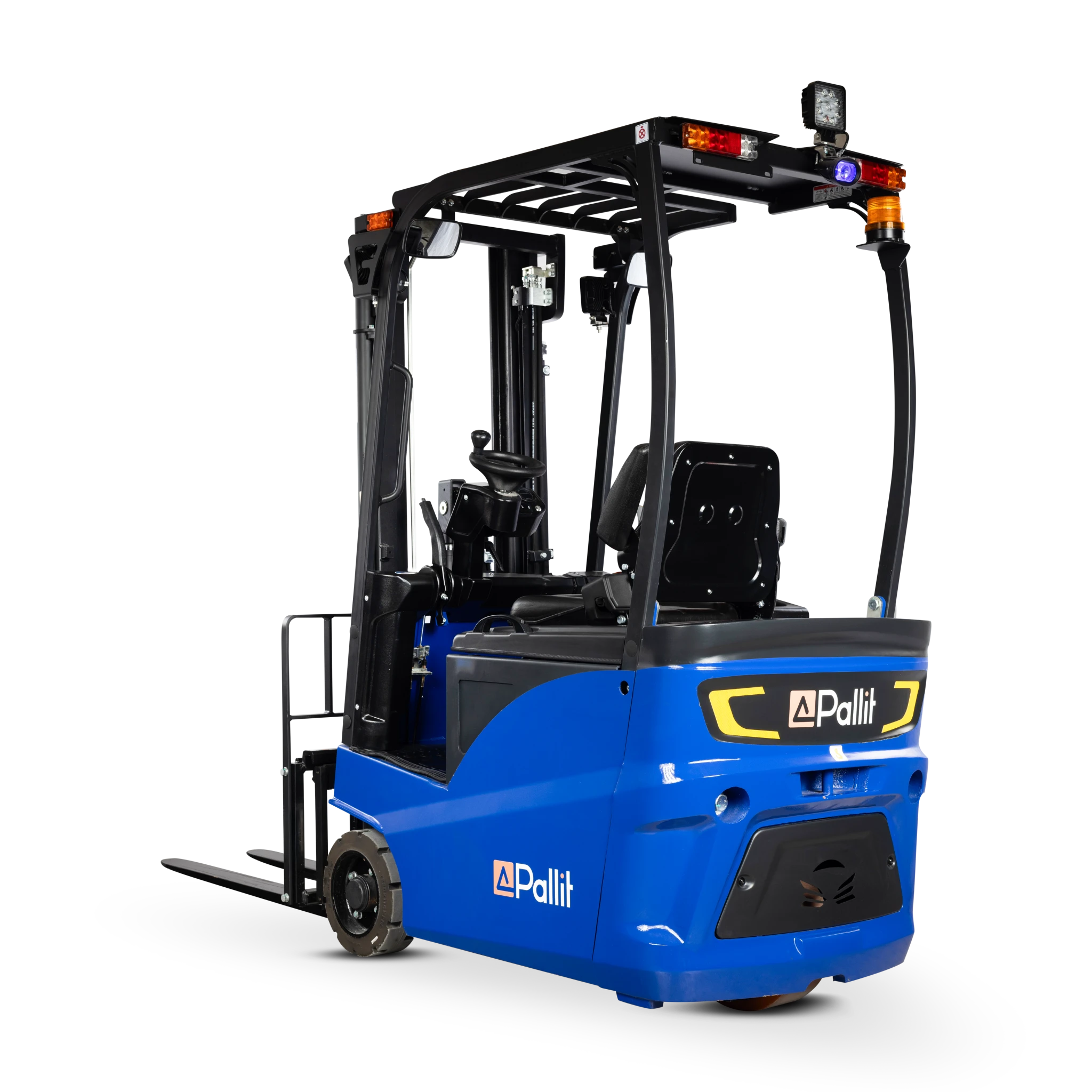

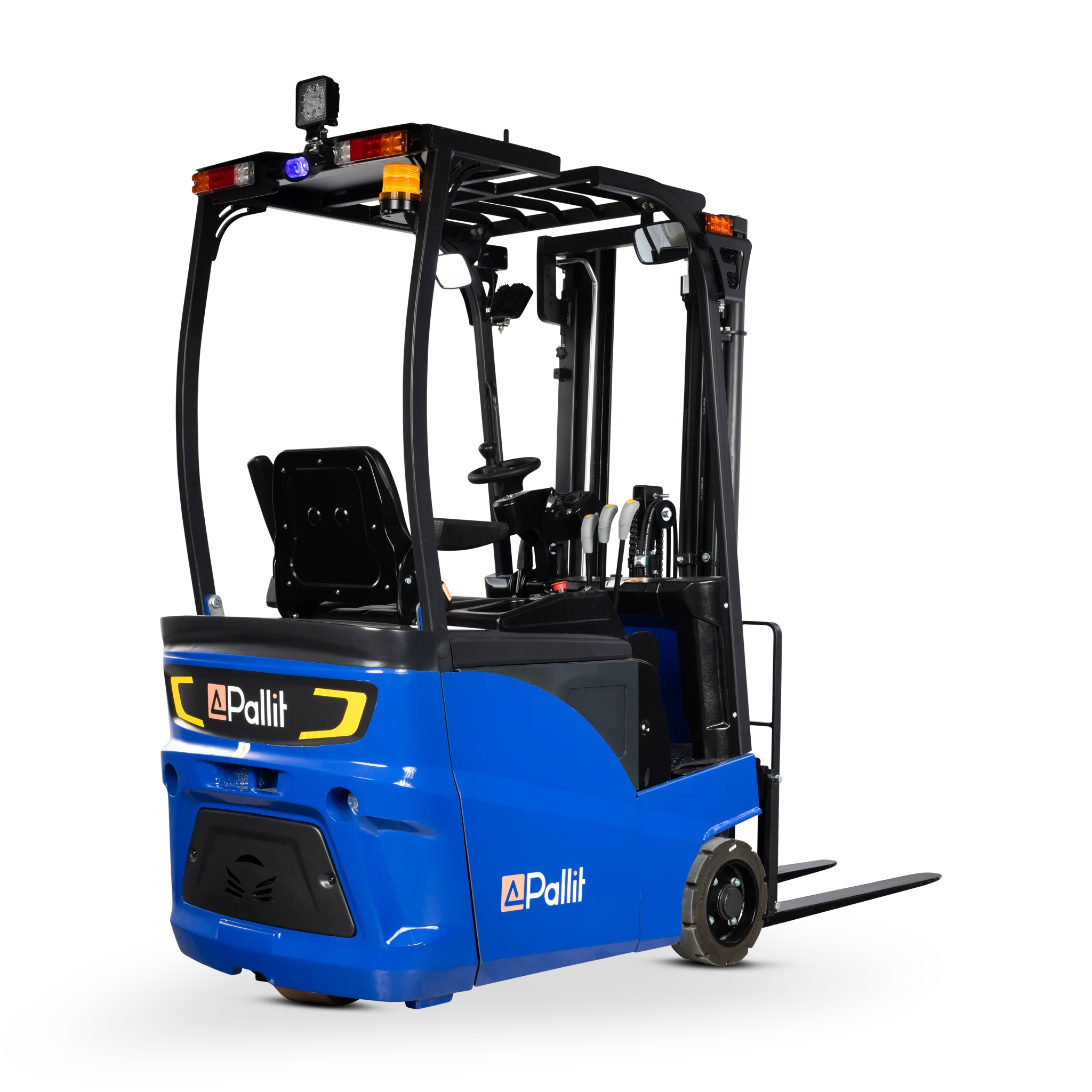

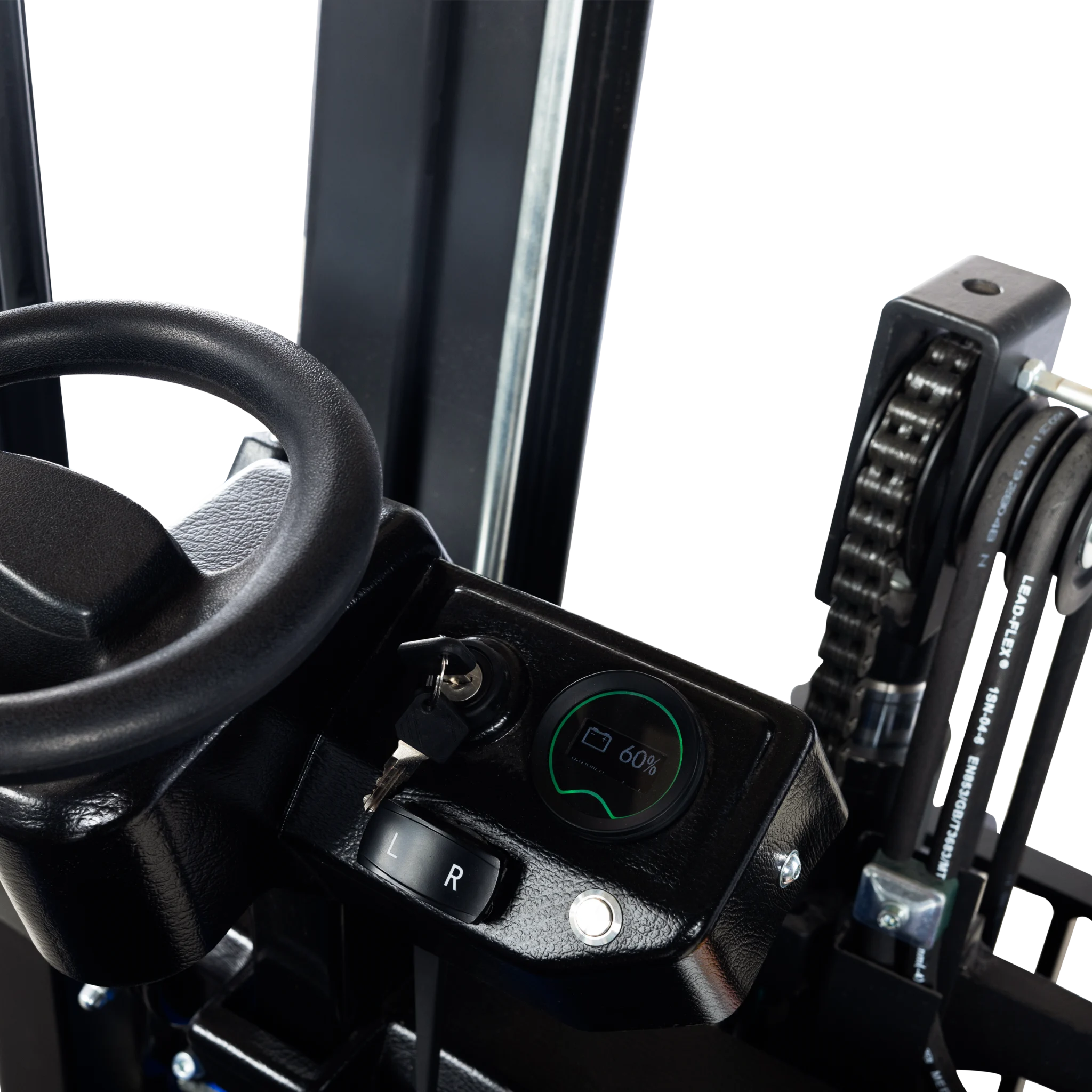

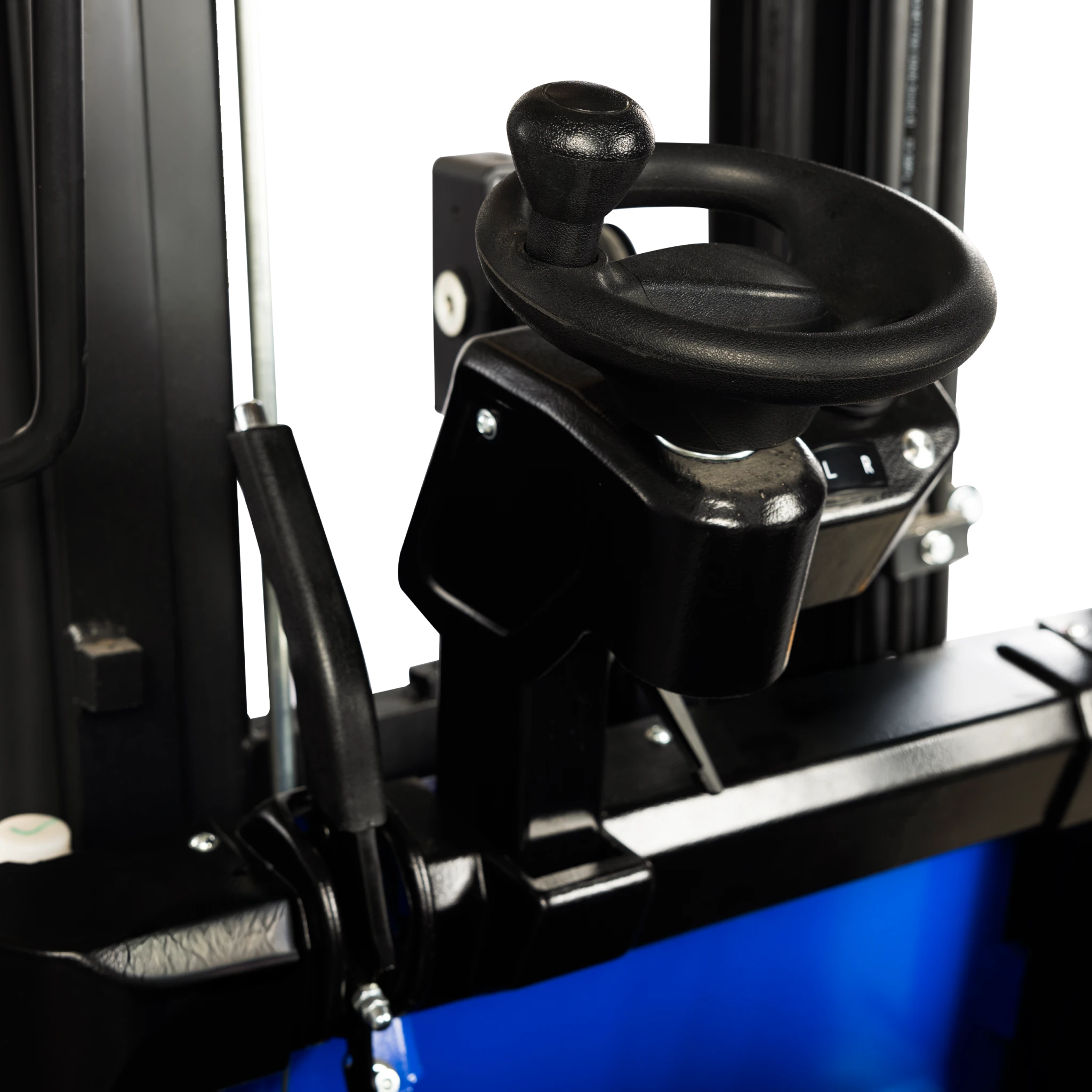

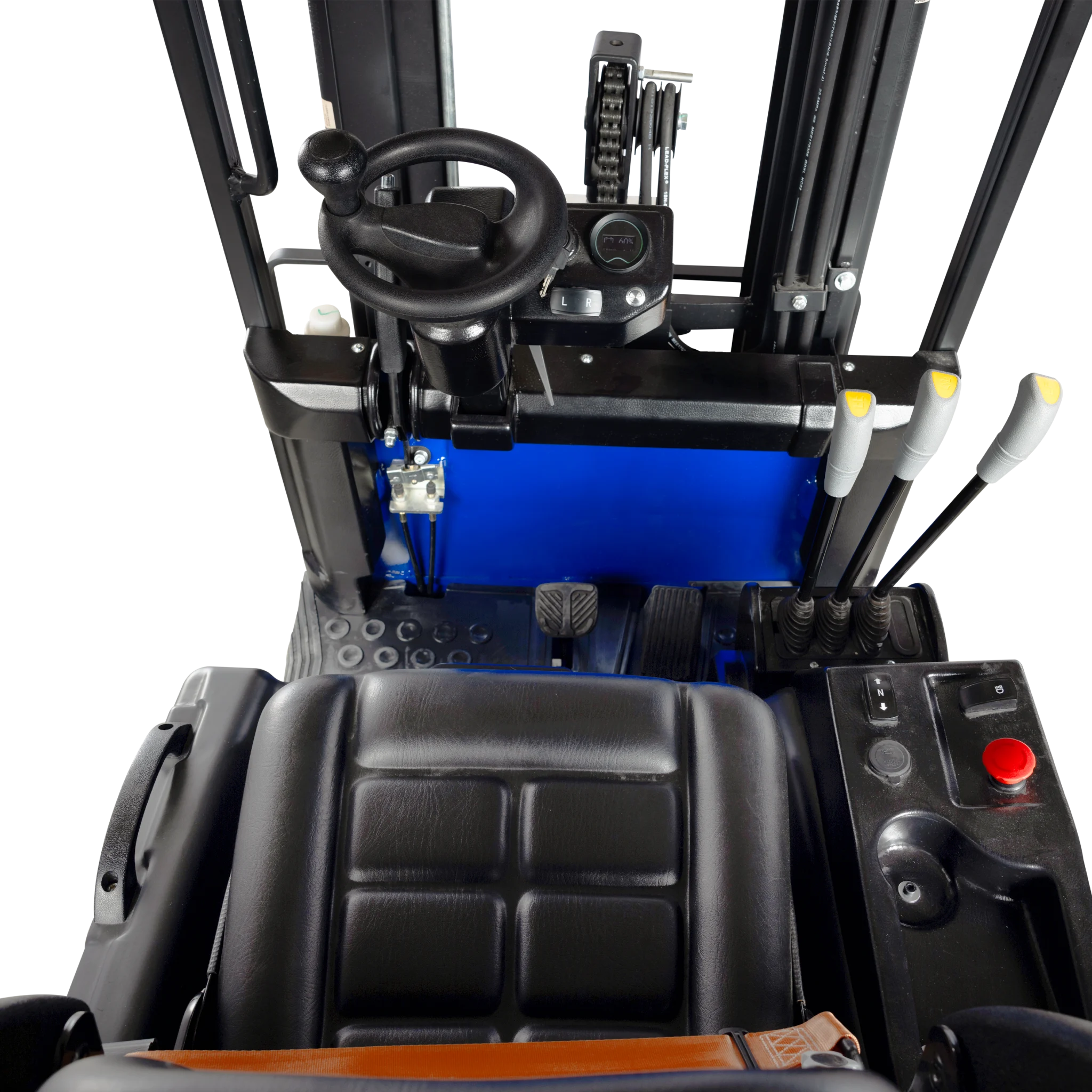

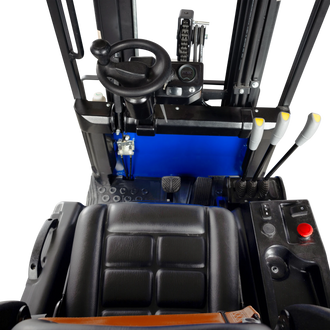

driver's cab

Comfortable, well thought out and gentle on the driver.

Technical data

General
Capacity
1200 kg
Weight
2240 kg
Sound level EN-12053
70 dB
Axle loading, unladen
860/990 kg
Axle loading, laden
2740/310 kg
Material
steel
Seal
CE
SKU
10010887-0
Brand
Pallit
Wheels
Wheels number
2x/ 2
Tire size, front
4.00-8 ″
Tire size, rear
3. 50-5 ″
Lift
Lift height
4000 mm
Free lift
no
Free lift height
1061 mm
Mast type
triplex
Tilt fork carriage
3/5 °
Drive
Drive motor type
alternating current (AC)
Travel speed, unladen
10 km/h
Gradeability, unladen
10 %
Max. gradeability, laden
6 %
Drive
electric
Brake
hydraulic brake
Parking brake
hydraulic
Battery
Battery capacity
280 Ah
Battery voltage
24 V
Battery charger
external charger
Delivery
Delivery
carrier
Delivered as
rolling (completely assembled)
Delivery requirements
Rampe oder Gabelstapler erforderlich vor Ort zur Abladung vom Lkw
Links
Capacity chart
Product brochure

Dimensions

  • Capacity
    Fork length
    Free lift height
    Height, lowered
    Lift height
    Weight
    Battery capacity
    Load centre
    Max. gradeability, laden
    Free delivery
    Customer Reviews
    Price
  • Elektro-Dreiradstapler EASY-L für 4,8m 1

    Electric three-wheel forklift EASY-M for 1.2t to 4m

    1200 kg
    1150 mm
    1061 mm
    2515 mm
    4000 mm
    2240 kg
    280 Ah
    500 mm
    6 %
