Electric Pallet Jack ONE-XS

Electric Pallet Jack ONE-XS

Name: Electric Pallet Jack ONE-XS
Brand: Pallit
SKU: 10010373-0
Price: 895.0 EUR
Availability: InStock

Our most affordable electric pallet truck with a lithium battery for operations up to 3h.

895 € 1.074,00 € VAT included

📢 In use by 368+ companies across Europe

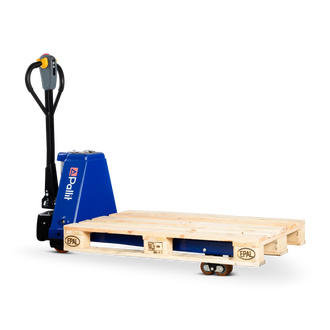

The ONE-XS electric pallet truck is our cheapest lithium pallet truck. It is compact, maneuverable and easy to use.

Capacity: It can lift and move 1,500 kg
Battery: Maintenance-free Li-ion battery with 48V and 10 Ah for fast charging and fast intermediate charging
Operating time: With one battery charge, it can move pallets for up to 3 hours at a time
Battery charging time: It is fully recharged in 5 hours
Fork length: 1,150 mm – ideal for Euro pallets

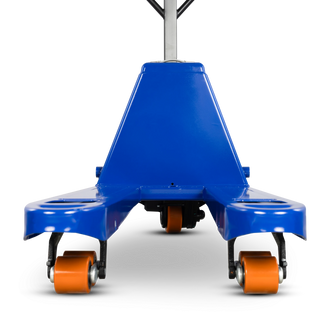

Fork roller type: Ball-bearing tandem rollers made of polyurethane (PU) are durable and offer low rolling resistance
Max. gradeability, laden: When loaded, it can overcome ramp gradients of up to 6%
Lifting and lowering: Fully electric at the touch of a button

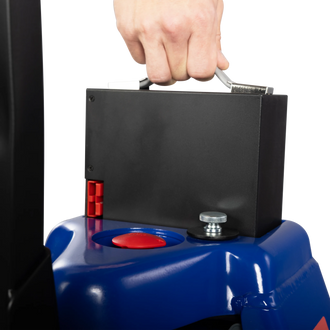

Battery replacement: Change the battery with just one hand movement – without additional tools
Low dead weight: At just 125 kg, it is ideal to take along in trucks
Application: ONE-XS is an affordable helper for moving pallets indoors occasionally. With a small turning radius, it is also ideal for confined spaces or maneuvering in trucks.

Features

Reliable basic quality

The ONE-XS is ideal for moving pallets indoors occasionally for up to 3 hours at a time. A practical helper at the lowest price!

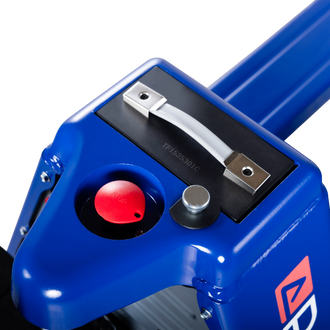

Lithium-ion battery

Solide performance with 48V voltage and 10 Ah capacity and completely maintenance-free - suitable for fast intermediate charging.

Easy charging

The battery can be removed in just a few steps and charged at a standard 230V socket using the included external battery charger - fully charged in 5 hours.

Climbing ability up to 6%

When loaded, the ONE-XS pallet truck can easily overcome ramp gradients of up to 6%.

Maneuverable and compact

With a 1,353 mm turning radius and narrow design, it is ideal for confined spaces.

Technical data

General

Capacity

1500 kg

Weight

125 kg

Forklift licence needed

No

Sound level EN-12053

70 dB

Chassis surface

Powder coated

Colour

Yellow

Seal

CE

Warranty

5 years warranty Basic

Brand

Pallit

Product ID

10010373-0

Wheels

Wheels material

Polyurethane (PU)

Steering wheel diameter

140 mm

Steering wheel width

55 mm

Fork roller type

tandem

Load roller wheel diameter

80 mm

Fork roller width

70 mm

Lift

Lift height

200 mm

Lift motor power

0.5 kW

Lift speed, unladen

0.035 m/s

Lowering speed, unladen

0.056 m/s

Lift type

Electrical

Drive

Drive motor power

0.75 kW

Drive motor type

Brushless DC motor

Travel speed, unladen

5 km/h

Creep speed button

Yes

Gradeability, unladen

20 %

Max. gradeability, laden

6 %

Drive

Electrical

Brake

Electromagnetic brake

Battery

Battery type

lithium-ion

Operating time

3 h

Battery charging time

5 h

Battery capacity

10 Ah

Voltage

48 V

Battery voltage

48 V

Battery quantity

1

Battery weight

5.5 kg

Battery charger

External charger

Delivery

Forwarding agency

Delivered as

On a pallet

Links

Product brochure

Product manual

Dimensions

Fork length

1150 mm

l
Lift height

200 mm

h3
Load centre

600 mm

c
Lift height, effective

115 mm

h12
Height

1276 mm

h14/h4
Tiller height

1276 mm

h14
Length

1552 mm

l1
Ground clearance

33 mm

m2
Ground clearance, outer

85 mm

h13

Width

550 mm

b1
Fork width, outer distance

550 mm

b5
Fork width, single fork

160 mm

e
Aisle width for 1200x800

1687 mm

Ast
Turning radius

1353 mm

Wa
Distance between forks

230 mm

Capacity

Fork length

Lift height

Weight

Wheels material

Battery capacity

Battery type

Load centre

Max. gradeability, laden

Operating time

Warranty
