Electric Beam Trolley BEAM 1t

Name: Electric Beam Trolley BEAM 1t
Brand: Pallit
SKU: 10010122-0
Price: 130.0 EUR
Availability: InStock

– 6 %

139,00 €

130,00 € 156,00 € VAT included

SKU 10010122-0

The electric trolley BEAM is optimally designed to safely attach and precisely position loads of up to 1000 kg. It is suitable for mounting on H-beams or similar support profiles and is powered by a powerful 120 W motor.

High load capacity: Reliable lifting of loads up to 1000 kg
Flexible application area: Minimum curve radius of 1000 mm for optimal maneuverability
Adjustable flange width: Adjustable from 68 - 110 mm , suitable for a variety of carrier profiles
Easy installation: Thanks to the low weight of only 15 kg, it is quick and easy to install
Convenient remote control: Operation of the trolley via remote control with a cable length of 1.6 m
Carrier compatibility: Suitable for IPE 140-200 and INP 160-240 carrier profiles
Compact dimensions: 320 x 330 x 165 mm (L x W x H), ideal for versatile applications

Technical data

General

Capacity

1000 kg

Weight

15 kg

Material

steel

Power rating

S3-25%-10

Seal

CE

Control cable length

1.6 m

Min. radius curve

1000 mm

SKU

10010122-0

Brand

Pallit

Lift

Lift motor power

120 kW

Battery

Battery voltage

230 V

Delivery

Parcel service

Delivered as

parcel

Links

Safety instructions

Product manual

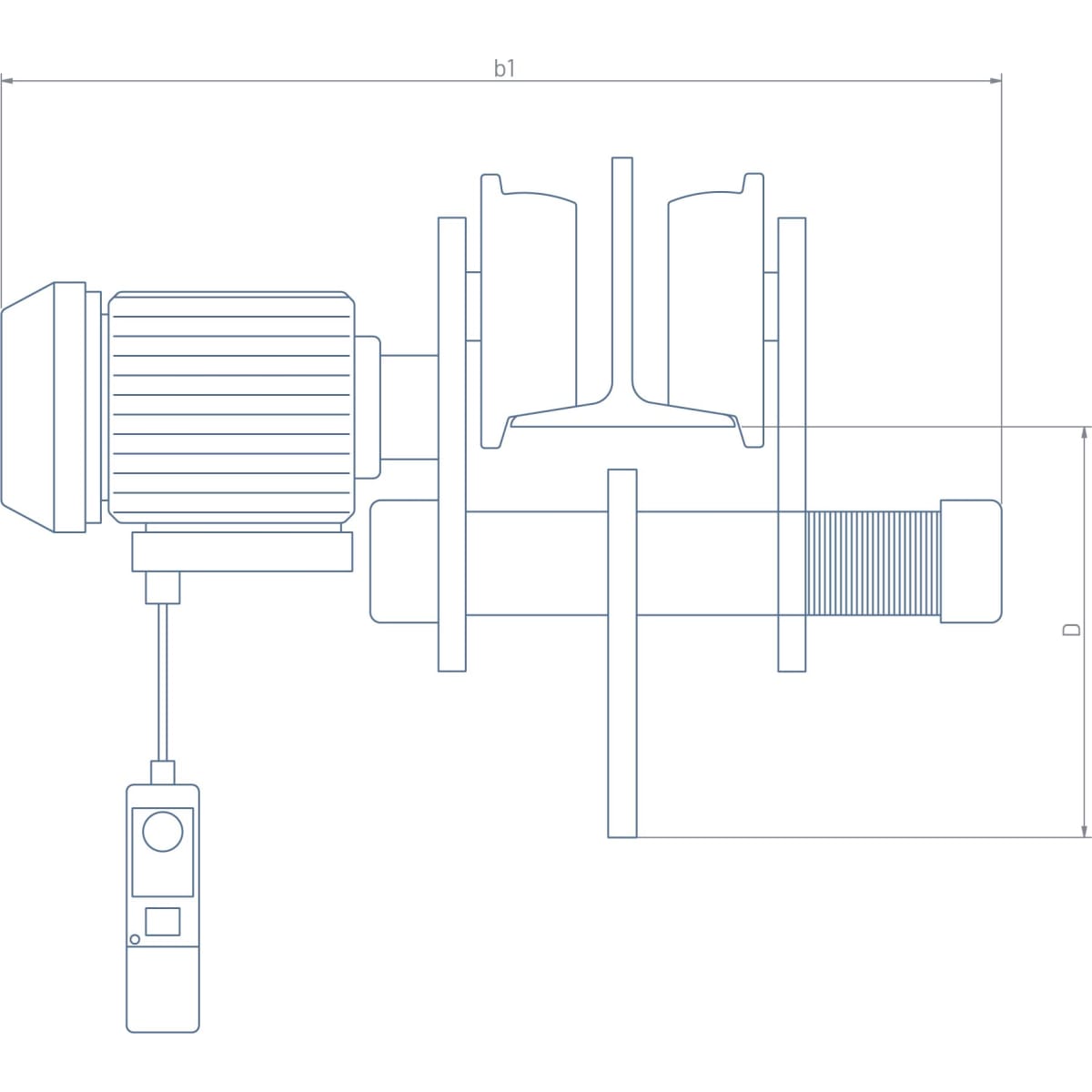

Dimensions

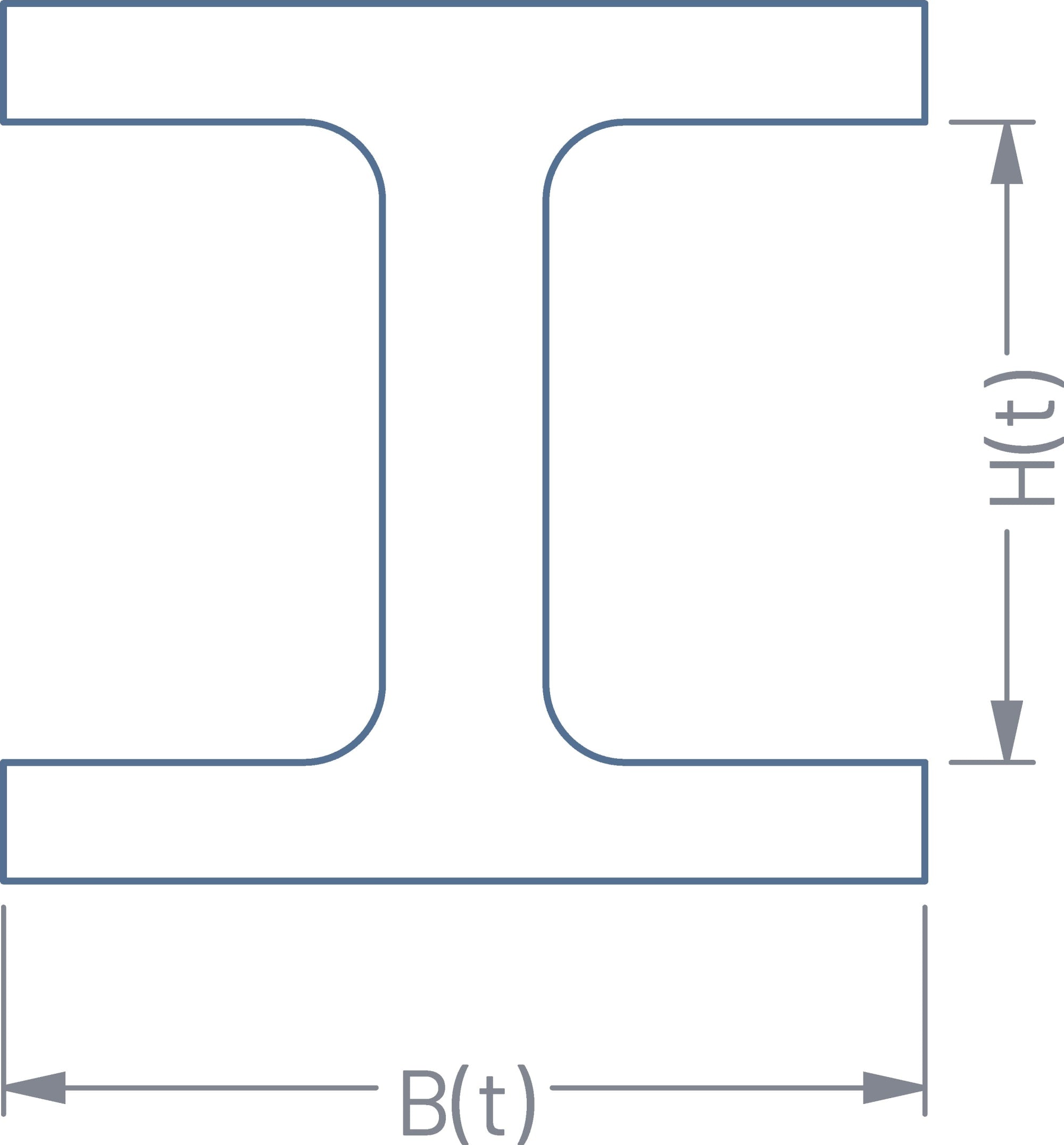

H-beam width

68 - 110 mm

B(t)
H-beam height, min.

100 mm

H(t)
